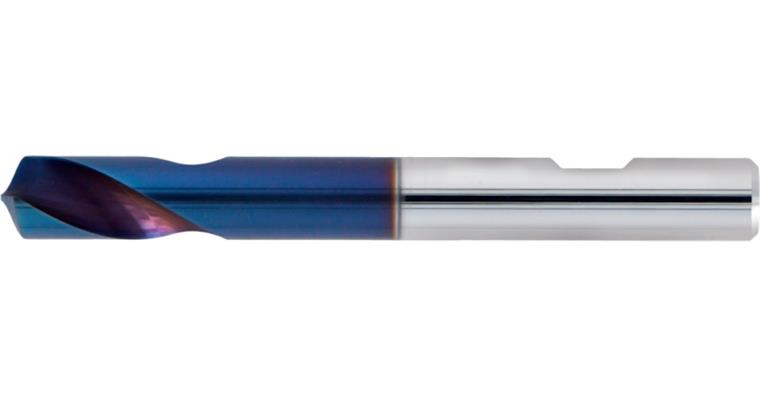

NC spotting drill, solid carbide 142° TiAlSiN, diameter 20 mm x 131 mm HB shaft

NC spotting drill, solid carbide 142° TiAlSiN, diameter 20 mm x 131 mm HB shaft

NC spotting drill, solid carbide 142° TiAlSiN, diameter 20 mm x 131 mm HB shaft
Item no: 1010907 220

Online price:

Still in stock: 5

Application
For 142° spot drilling for the following twist drills on CNC machines.

Execution
Spiral-fluted design

Advantage
  • Short design with precise point geometry and chisel edge ensure form-true and process-reliable spot drilling
  • The follow-on tool does not run off centre
  • Precise gauge thanks to special point thinning of the chisel edge
  • Maximal service life thanks to innovative coating

Notes
Diameter less than 6 mm with HA shaft

Brand: ATORN
Material to be processed: Universal use
Angle of the tip: 142 Degree
Cutting material: SC
Surface: TiAlSiN
Tool holding device: HB parallel shank
Cutting edge diameter: 20 mm
Cutting edge length: 40 mm
Length: 131 mm
f steel 1300: 0,23 mm/r

ATORN-No.: 10916171

EAN no.: 4050293695861

Product Datasheet Datasheet cutting values
