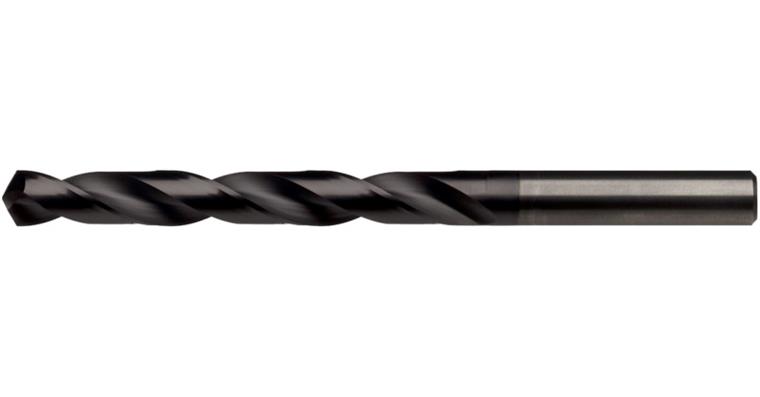

ATORN solid carbide twist drill bit TiALN type N 5xD 3.7 mm x 70 mm 118°

ATORN solid carbide twist drill bit TiALN type N 5xD 3.7 mm x 70 mm 118°

ATORN solid carbide twist drill bit TiALN type N 5xD 3.7 mm x 70 mm 118°
Item no: 1011022 117

Online price:

Available in 6-8 working days.

Application
Standard geometry for use up to a strength of 1300 N/mm².

Execution
Standard solid carbide tool with universal precision-ground flutes

Advantage
  • excellent all-round properties and precise cutting pattern
  • universal use: minimises tool costs and improves flexibility
  • Cutting edge preparation minimises micro-fractures on the cutter
  • TiAlN coating for up to 50% longer service life, dry processing possible in steel


Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN
Type: N
Tool holding device: HA parallel shank
Cutting edge diameter: 3,7 mm
Chip flute length: 39 mm
Length: 70 mm
f steel 1000: 0,09 mm/r
DIN: 338

ATORN-No.: 10480111

EAN no.: 4050293327601

Product Datasheet Datasheet cutting values
