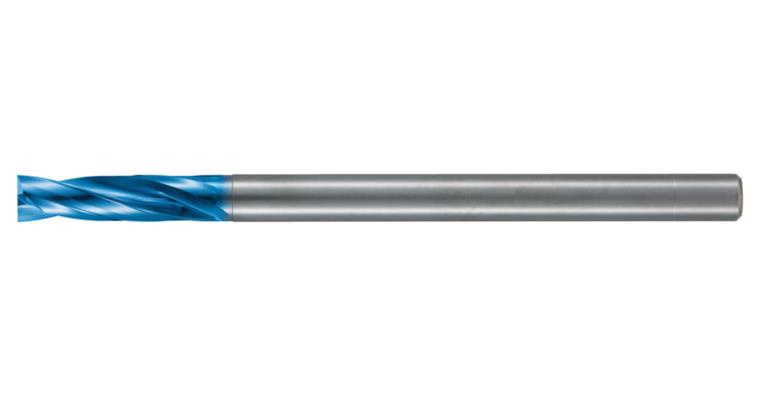

Solid carbide flat drill bit 180° AQUA Drill EX Flat 2xD long shank dia. 11.6 mm

Solid carbide flat drill bit 180° AQUA Drill EX Flat 2xD long shank dia. 11.6 mm

Solid carbide flat drill bit 180° AQUA Drill EX Flat 2xD long shank dia. 11.6 mm
Item no: 1011103 096

Online price:

Available in 6-8 working days.

Application
For high-precision drilling with flat base up to 48 HRC. Diagonal drilling, countersinking, thin sheets and blind holes - all with one tool. Suitable for cross-drilled holes. Drilling with reduced burr. For deeply recessed holes.

Execution
  • Right-cutting
  • Helix angle 20°
  • Flat drill bit 180°
  • 2 cutting edges
  • Long shank for deep holes
  • Double drill heel
  • AQUA EX coating guarantees long service life through higher temperature and wear resistance (TiAlN multi-layer coating)

Notes
Centring hole is recommended. When drilling inclined surfaces, the rotation speed and feed rate must be adapted! See cutting data. Use only high-precision tool chucks.

Brand: NACHI
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN multilayer coating
Max. drilling depth (D): 2xD
Angle of the tip: 180 Degree
Coolant supply: External
Tool holding device: HA parallel shank
Cutting edge diameter: 11,6 mm
Shank diameter: 10 mm
Chip flute length: 54 mm
Length: 150 mm
f steel 1000: 0,200 mm/r
Cutting direction: Right-hand cutting
Number of cutting edges: 2 PCS
Tolerance of cutting edge diameter: h7
Tolerance of shank diameter: h6

Manufacturer part no.: L9816 11,6

Product Datasheet Datasheet cutting values
