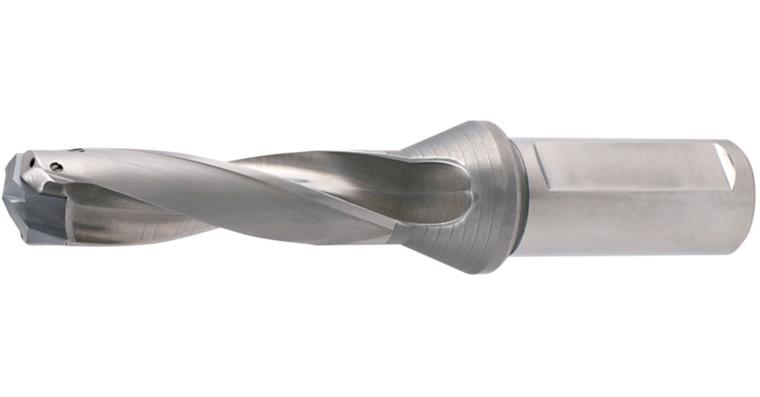

Indexable insert drilling jig with int. cooling dia. 20.5 mm, drilling depth 3xD

Indexable insert drilling jig with int. cooling dia. 20.5 mm, drilling depth 3xD

Indexable insert drilling jig with int. cooling dia. 20.5 mm, drilling depth 3xD
Item no: 1011130 205

Online price:

Available in 5-7 working days.

Application
For universal use up to 1300 N/mm².

Execution
  • Coated carrier body made of high-strength, heat-resistant powder metal
  • Diameter range 8.0-11.5 mm with straight shank HA
  • Diameter range 12.0-40.0 mm with straight shank HB

Advantage
  • High-precision h6 shank tolerance
  • Indexable inserts can be easily replaced in the power tool
  • Innovative rake
  • Polished chip chambers ensure smooth and reliable chip removal

Notes
Available up to drilling depth 10xD and diameter 50 mm on request.

Brand: LIZZARD
Max. drilling depth (D): 3xD
Min./max. cutting edge diameter (D min./max.): 20.5-20.9 mm
Chip flute length: 82 mm
Length (L): 160 mm
Angle of the tip: 130 Degree
Shank diameter (D1): 25 mm
Coolant supply: Internal

EAN no.: 4024496151516

Product Datasheet
