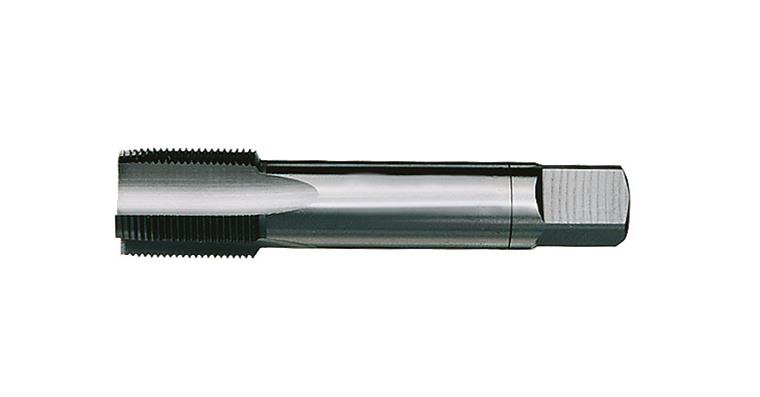

Hand tap DIN 2181 no. 1 taper tap HSS MF 14x1.50

Hand tap DIN 2181 no. 1 taper tap HSS MF 14x1.50

Hand tap DIN 2181 no. 1 taper tap HSS MF 14x1.50
Item no: 1014054 145

Online price:

Available for immediate delivery

Application
For production of standard ISO DIN 13 metric threads. For unalloyed and low-alloy steels up to 800 N/mm² strength.

Execution
  • Taper tap with chamfer shape D with one ring
  • Right-cutting
  • Straight-grooved
  • HSS, ground


Brand: LIZZARD
Thread type x nominal diameter: MF14
Pitch: 1,5 mm
Core hole diameter: 12,50 mm
Length: 70 mm
Shank diameter: 11 mm
Shank square: 9 mm
Colour ring system: Steels
Design: Taper tap
Shank style: Cylindrical with square drive
Thread type: Metric fine thread
Lead angle shape: D
DIN: 2181
Cutting material: HSS
Cutting direction: Right-hand cutting
Hole type: Clearance/blind hole ≤ 2.5xD
Surface: Uncoated
Tolerance of screw taps: 6H
Nominal diameter: 14 mm
Twist angle: 0°

EAN no.: 4024496018833
