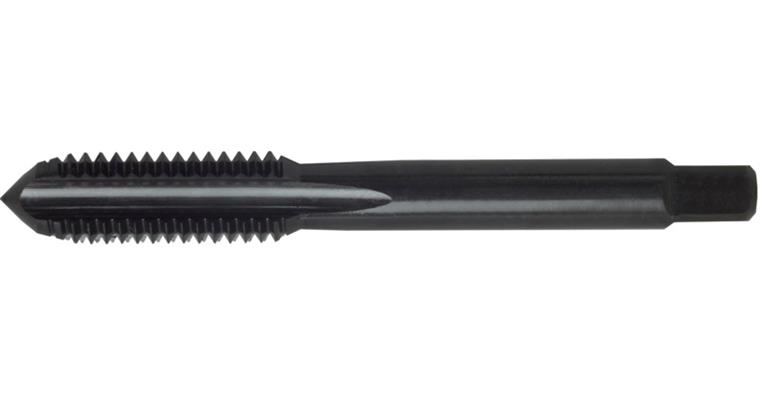

ATORN hand tap FS HSSE-PM nitrided C 352 0° M6 1 mm ISO2 x D/S 3xD

ATORN hand tap FS HSSE-PM nitrided C 352 0° M6 1 mm ISO2 x D/S 3xD

ATORN hand tap FS HSSE-PM nitrided C 352 0° M6 1 mm ISO2 x D/S 3xD
Item no: 1014060 406

Online price:

Available in 6-8 working days.

Application
For producing metric threads by hand in through holes and blind holes, in steel, (stainless steel), cast iron and (special alloys) material groups up to a strength of 1300 N/mm² in single-part production.

Execution
Third tap (plug) with notch shape C without ring

Advantage
Long service life and process reliability through innovative cutting geometry in machining high-strength steel


Brand: ATORN
Material to be processed: Universal use
Design: Third tap
Type: UNI MAX 1300 N/mm2
Thread type: Metric thread
Thread type x nominal diameter: M6
Lead angle shape: C
Pitch: 1 mm
Cutting material: HSSE-PM
Shank diameter: 6 mm
Hole type: Clearance/blind hole ≤ 3xD
Shank square: 4,9 mm
Surface: Nitrated
Tolerance of screw taps: ISO 2X (6HX)
Core hole diameter: 5 mm
Length: 50 mm
Cutting speed (steel 1000) suitability (Eignung Stahl 1000 N/mm2): 2
Cutting speed (steel 1300) suitability (Eignung Stahl 1300 N/mm2): 1
Overall stainless steel suitability (Eignung Edelstahl ): 3
fitness not iron total (Eignung NE-Metalle): 2
Cutting speed (cast) suitability (Eignung Guss): 1
fitness Titan/Nickel/Super total (Eignung Sonderlegierung): 2
fitness stainless steel total (Eignung Hartbearbeitung): 3
DIN: 352

ATORN-No.: 10470557

EAN no.: 4050293015867

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN hand tap VS HSSE nitrided A 352 0° M6 1 mm ISO2 D/S 3xD
  •

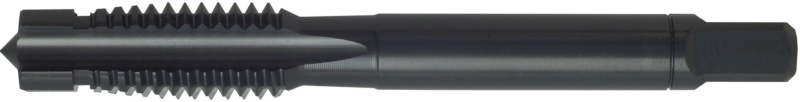

    ATORN hand tap FS HSSE nitrided C 352 0° M6 1 mm ISO2 D/S 3xD
  •
    ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • Hand tap DIN 352 no. 2 second tap HSS-E M16
  •

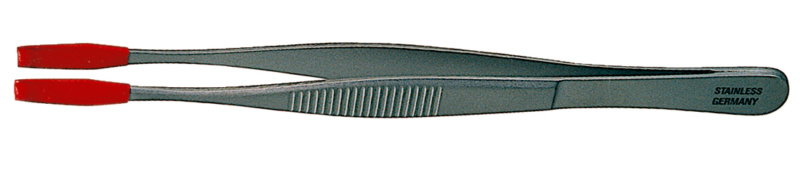

    Electronic fitting tweezers, vertical, smooth gripping surface length 145 mm
  •

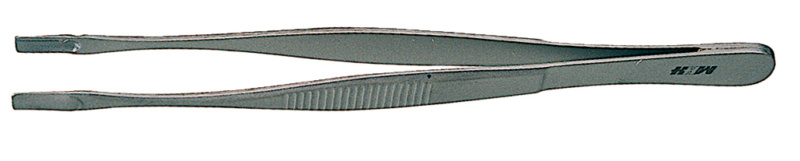

    Electronics fitting tweezers gripping surfaces coated rustproof 145 mm
  •
