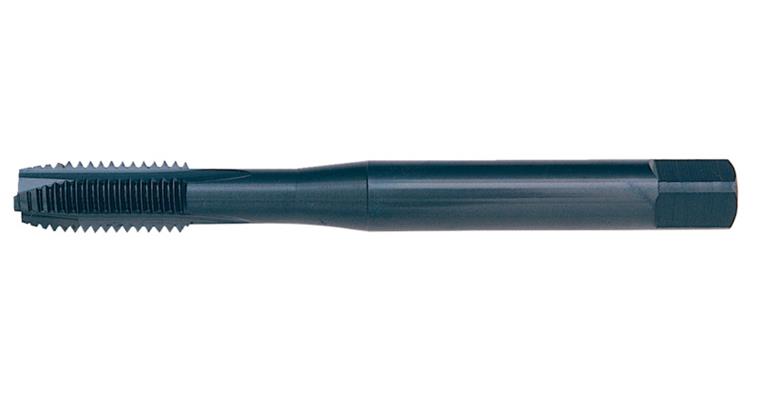

Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-OX M4

Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-OX M4

Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-OX M4
Item no: 1014306 202

Online price:

Still in stock: 8

Application
- Metric thread
- Through holes
- Max. drilling depth 1.5xD
- Steels up to 800 N/mm²
- Special OX coating for soft and lubricating steels (St33/St37)

Execution
  • Spiral point
  • Tolerance field 6H
  • DIN 371
  • DIN chamfer shape B (3.5-5 turns)
  • HSS-E OX


Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter: M4
Max. thread depth: 1.5xD
Thread dimension: M4
Pitch: 0,7 mm
Cutting material: HSSE
Surface: Vaporised
Hole type: Clearance hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 63 mm
Cutting edge length: 13 mm
Core hole diameter: 3,30 mm
Shank diameter: 4,5 mm
Shank square: 3,4 mm
Thread type: Metric thread
Type: OX
Twist angle: 0°
DIN: 371
Coolant supply: External
Nominal diameter: 4 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

EAN no.: 4024496020980

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Through hole screw tap M uni DIN 371 shape C 2.5xD PM-TiCN M3
  •
    ATORN screw tap HSSE vaporised form B UNC 3/4 inch for through hole
  •
    ATORN boring bar, positive, with internal cooling A12L SDXCL07
    138,20 €
  • ATORN test pin RSB TC1 8.91 mm x 70 mm
  •
    Through hole screw tap M Rekord-1B DIN 371 shape B 3xD HSS-E M6
  •
    Through hole screw tap M DIN 376 shape B 3xD HSS-E-TiN M18
  •
    ATORN screw tap HSSE vaporised G 1 1/4 inch shape C for blind hole
  •

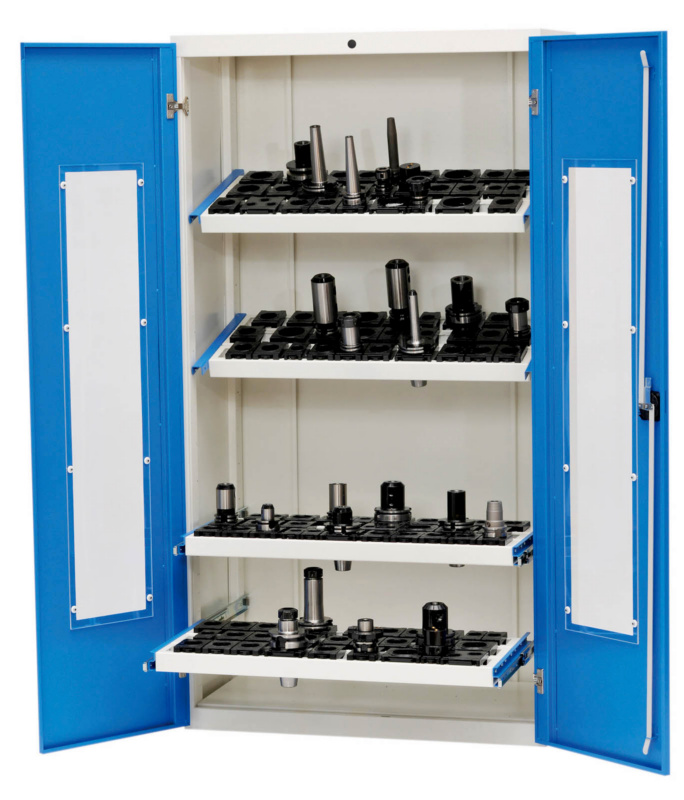

    CNC hinged door cab. (empty) 1838x980x500mm RAL 7035/5010 w/ doors w/ view. wndw
  •
