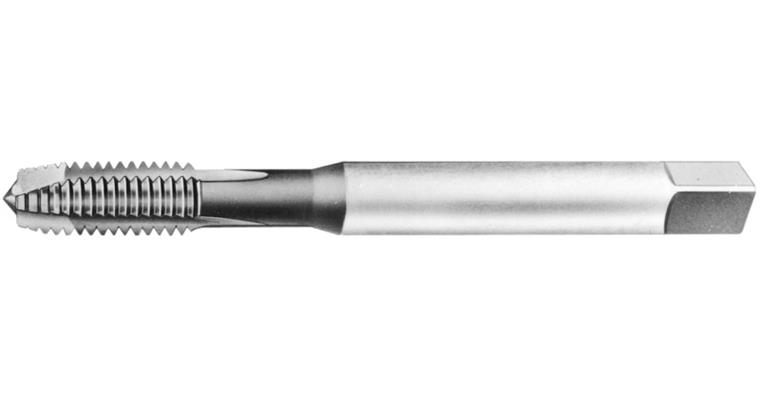

Through hole screw tap M Rekord-1B DIN 371 shape B 3xD HSS-E M6

Through hole screw tap M Rekord-1B DIN 371 shape B 3xD HSS-E M6

Through hole screw tap M Rekord-1B DIN 371 shape B 3xD HSS-E M6
Item no: 1014315 112

Online price:

Available in 5-7 working days.

Application
- Metric thread
- Through holes
- Max. drilling depth 3xD
- Steels up to 900 N/mm²

Execution
  • Rekord 1B
  • Spiral point
  • Tolerance field 6H
  • DIN 371
  • DIN chamfer shape B (3.5-5 turns)
  • HSS-E


Brand: EMUGE
Material to be processed: Steel
Thread type x nominal diameter: M6
Max. thread depth: 3xD
Pitch: 1 mm
Cutting material: HSSE
Surface: Uncoated
Hole type: Clearance hole ≤ 3xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 80 mm
Cutting edge length: 17 mm
Core hole diameter: 5,00 mm
Shank diameter: 6 mm
Shank square: 4,9 mm
Thread type: Metric thread
Type: Rekord-1B
Twist angle: 0°
DIN: 371
Coolant supply: External
Nominal diameter: 6 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Manufacturer part no.: B250

Product Datasheet Datasheet cutting values
