Through hole screw tap M DIN 371 shape B 3xD HSS-E vaporised VA steels M4

Through hole screw tap M DIN 371 shape B 3xD HSS-E vaporised VA steels M4

Through hole screw tap M DIN 371 shape B 3xD HSS-E vaporised VA steels M4
Item no: 1014318 104

Online price:

Available for immediate delivery

Application
- Metric thread
- Through holes
- Max. drilling depth 3xD
- VA steels up to 1,200 N/mm²

Execution
  • Spiral point tap
  • Reduction in buildup of material deposits through vaporisation
  • Tolerance range 6H
  • DIN 371/376
  • HSSE, vaporised

Notes
Very well suited for VA machining.

Brand: ATORN
Material to be processed: Stainless steel
Thread type: Metric thread
Thread type x nominal diameter: M4
Tolerance of screw taps (Tol.): 6H
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 63 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 0,7 mm
Twist angle: 0°
DIN: 371
Shank diameter: 4,5 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 3,30 mm
Shank square: 3,4 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290118

EAN no.: 4050293131970

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • Through hole screw tap M DIN 371 shape B 3xD HSS-E vaporised VA steels M6
  •
    Through hole screw tap M DIN 371 shape B 3xD HSS-E vaporised VA steels M3
  •
    ATORN screw tap HSSE-PM TiN B 376 50° M12 1.75 mm ISO2 S 2.5xD CNC
  •
    1/2 inch hex socket screwdriver bit long CV steel ball head AF 12 mm
  •
    Through hole screw tap M DIN 371 shape B 3xD HSS-E vaporised VA steels M8
  •

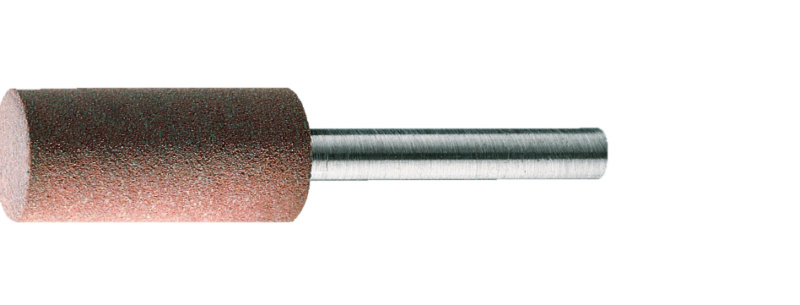

    Poliflex® cylindrical fine grinding point cor. pink rubber bonding G120 30x30mm
  •
    Cooling concentrate 9.5 litre canister
    287,00 €
  • Through hole screw tap M DIN 371 shape B 3xD HSS-E vaporised VA steels M5
  •
    1/4 inch hex imp. screwdr. bit CV special steel long AF 13 mm + spr. load magnet
  •

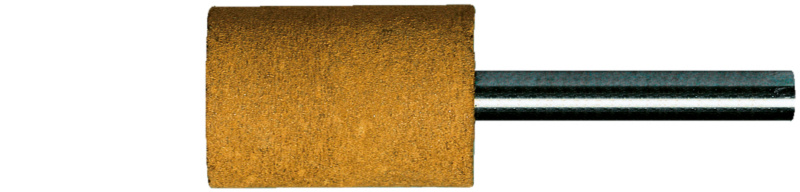

    Poliflex® cylindrical fine grinding point cor. wht. leather bonding G120 30x30mm
  •
