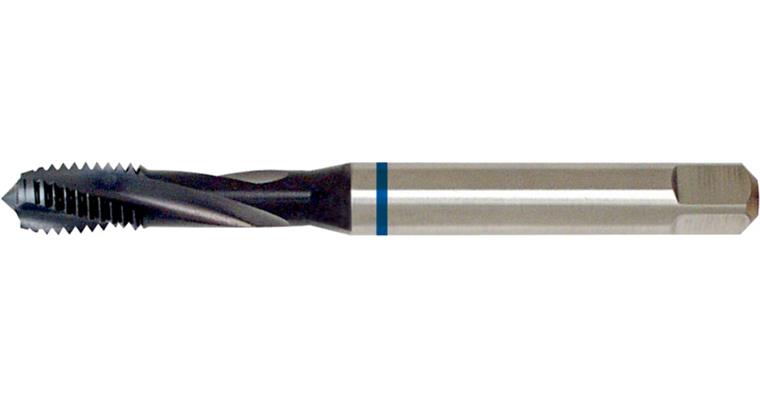

Blind hole screw tap M DIN 371 15° shape C 2xD HSS-E-TiCN M6

Blind hole screw tap M DIN 371 15° shape C 2xD HSS-E-TiCN M6

Blind hole screw tap M DIN 371 15° shape C 2xD HSS-E-TiCN M6
Item no: 1014394 106

Online price:

Available for immediate delivery

Application
- Metric thread
- Blind holes
- Max. drilling depth 2xD
- Steels up to 1,000 N/mm²

Execution
  • With enlarged chip area
  • Excellent emergency running properties and the most rigorous standards in terms of performance due to special TiCN coating
  • Tolerance range 6H
  • DIN 371/DIN 376
  • Right-hand spiral grooves approx. 15°
  • DIN type C (2-3 chamfer threads)
  • HSSE, TiCN-coated


Brand: ATORN
Material to be processed: Steel
Thread type: Metric thread
Thread dimension: M6
Thread type x nominal diameter: M6
Tolerance of screw taps (Tol.): 6H
Hole type: Blind hole ≤ 2xD
Lead angle shape: C
Length: 80 mm
Cutting material: HSSE
Surface: TiCN
Pitch: 1 mm
Twist angle: 15° (right)
DIN: 371
Shank diameter: 6 mm
Application type/machine type: Conventional | CNC
Core hole diameter: 5,00 mm
Coolant supply: External
Shank square: 4,9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290283

EAN no.: 4050293133127

Product Datasheet Datasheet cutting values
