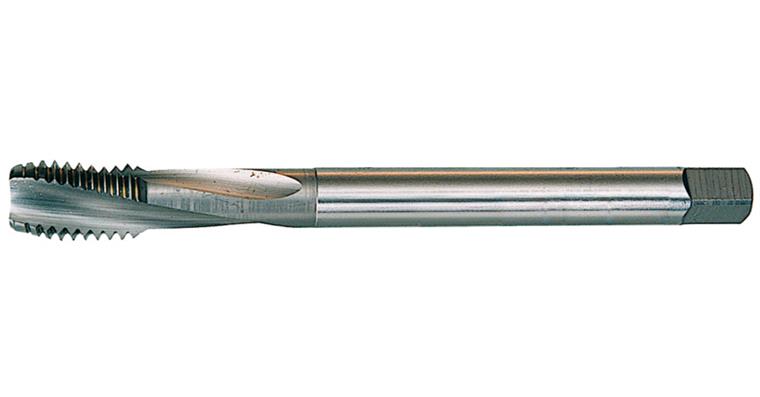

Blind hole screw tap M DIN 376 15° shape C 1.5xD HSS-E M18

Blind hole screw tap M DIN 376 15° shape C 1.5xD HSS-E M18

Blind hole screw tap M DIN 376 15° shape C 1.5xD HSS-E M18
Item no: 1014406 111

Online price:

Available in 6-8 working days.

Application
- Metric thread
- Blind holes
- Max. drilling depth 1.5xD
- Steels up to 800 N/mm²

Execution
  • Tolerance field 6H
  • DIN 376
  • Right-hand spiral flute approx. 15°
  • DIN chamfer shape C (2-3 turns)
  • HSS-E


Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter: M18
Max. thread depth: 1.5xD
Thread dimension: M18
Pitch: 2,5 mm
Cutting material: HSSE
Surface: Uncoated
Hole type: Blind hole ≤ 1.5xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: C
Length: 125 mm
Cutting edge length: 25 mm
Core hole diameter: 15,50 mm
Shank diameter: 14 mm
Shank square: 11 mm
Thread type: Metric thread
Twist angle: 15° (right)
DIN: 376
Coolant supply: External
Nominal diameter: 18 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting
