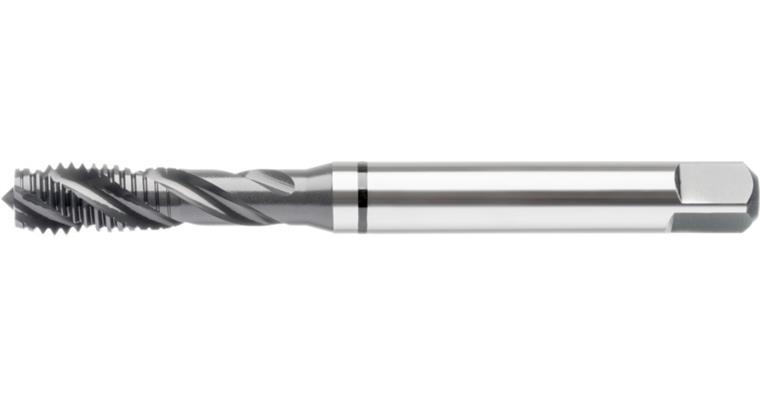

ATORN screw tap HSSE C 376 40° M30 ISO2 2.5xD CNC UNI for blind hole

ATORN screw tap HSSE C 376 40° M30 ISO2 2.5xD CNC UNI for blind hole

ATORN screw tap HSSE C 376 40° M30 ISO2 2.5xD CNC UNI for blind hole
Item no: 1014455 130

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC machines or conventional machines in blind holes in the steel, stainless steel, non-ferrous metals and cast iron material groups up to a strength of 1000 N/mm²

Execution
Structural dimensions in accordance with: DIN 371 = reinforced shank (up to M10), DIN 376 = over-long shank (from M12)

Advantage
  • Universal use for maximum flexibility in use
  • Innovative cutter geometry ensures high process reliability even in difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric thread
Thread type x nominal diameter: M30
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 180 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 3,5 mm
Twist angle: 40° (right)
DIN: 376
Shank diameter: 22 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 26,5 mm
Type: UNI 40 Control
Coolant supply: External
Shank square: 18 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290929

EAN no.: 4050293415629

Product Datasheet Datasheet cutting values
