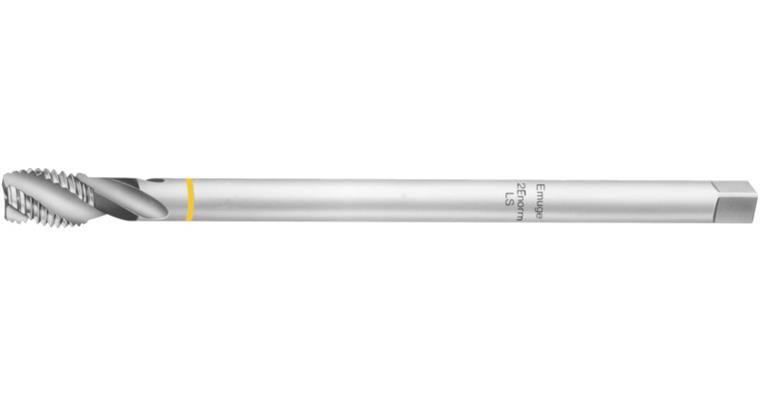

Blind hole screw tap M 1-Enorm-LS DIN 371 39° shape C 2.5xD HSS-E extra-long M5

Blind hole screw tap M 1-Enorm-LS DIN 371 39° shape C 2.5xD HSS-E extra-long M5

Blind hole screw tap M 1-Enorm-LS DIN 371 39° shape C 2.5xD HSS-E extra-long M5
Item no: 1014459 203

Online price:

Still in stock: 1

Application
- Very well suited to thread cutting in hard-to-reach places
- Metric thread
- Blind holes
- Max. drilling depth 2.5xD
- Steels up to 900 N/mm²

Execution
  • 1 Enorm LS
  • Extra-long shank
  • Tolerance field 6H
  • DIN 371
  • Right-hand spiral flute approx. 39°
  • DIN chamfer shape C (2-3 turns)
  • HSS-E

Notes
Screw tap deviates from the ATORN colour system (yellow ring: here for low-alloy steels).

Brand: EMUGE
Material to be processed: Steel
Thread type x nominal diameter: M5
Max. thread depth: 2.5xD
Thread dimension: M5
Pitch: 0,8 mm
Cutting material: HSSE
Surface: Uncoated
Hole type: Blind hole ≤ 2.5xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: C
Length: 140 mm
Cutting edge length: 8 mm
Core hole diameter: 4,20 mm
Shank diameter: 6 mm
Shank square: 4,9 mm
Thread type: Metric thread
Twist angle: 39°
DIN: 371
Coolant supply: External
Nominal diameter: 5 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Manufacturer part no.: B482

Product Datasheet Datasheet cutting values
