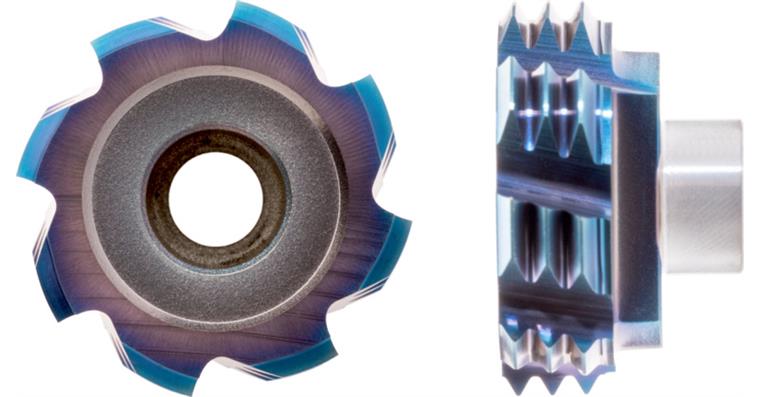

ATORN cutting insert multi-flute cutter full profile 60° T=6 A18 17.8 mm 2.5 mm

ATORN cutting insert multi-flute cutter full profile 60° T=6 A18 17.8 mm 2.5 mm

ATORN cutting insert multi-flute cutter full profile 60° T=6 A18 17.8 mm 2.5 mm
Item no: 1014465 503

Online price:

Available in 4-6 working days.

Application
For producing metric right-hand and left-hand threads on CNC machines, in steel, stainless steel, non-ferrous metals, cast iron and special alloy material groups up to a strength of 1500 N/mm².

Execution
Multiple-edge cutter in full-profile design

Advantage
  • Innovative cutting geometry for excellent dimensional tolerance and process reliability
  • High-quality cutting material and cutting edge finish
  • Precise thread milling of profiles


Brand: ATORN
Indexable insert type: A18
Suitable for holder: A6 | A7 | A8 | A9 | A16
Pitch: 2,5 mm
Suitable for metric threads from: M22
Suitable for metric fine threads from: MF22
Number of cutting edges: 6 PCS
Number of teeth: 2 PCS
Cutting edge diameter: 17,8 mm
fz steel 1300: 0,16 mm

ATORN-No.: 11947636

EAN no.: 4050293414554

Product Datasheet Datasheet cutting values
