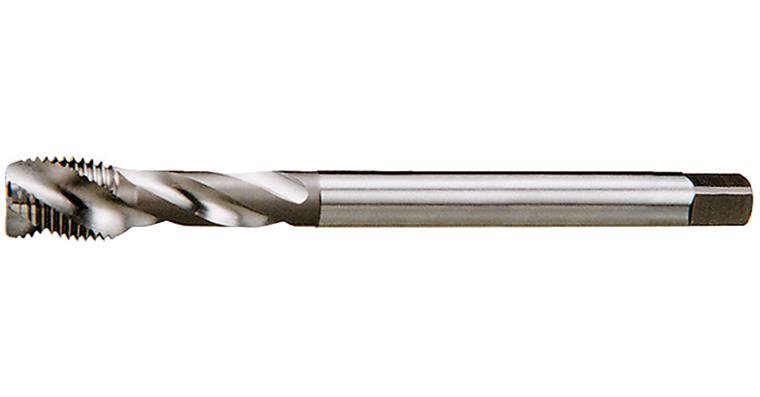

Blind hole screw tap MF DIN 374 40° shape C 2.5xD HSS-E MF12x1.50

Blind hole screw tap MF DIN 374 40° shape C 2.5xD HSS-E MF12x1.50

Blind hole screw tap MF DIN 374 40° shape C 2.5xD HSS-E MF12x1.50
Item no: 1014502 117

Online price:

Still in stock: 6

Application
- Metric fine thread
- Blind holes
- Max. drilling depth 2.5xD
- Steels up to 800 N/mm²

Execution
  • Tolerance field 6H
  • DIN 374
  • Right-hand spiral flute approx. 40°
  • DIN chamfer shape C (2-3 turns)
  • HSS-E


Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter: MF12
Max. thread depth: 2.5xD
Thread dimension: M12
Pitch: 1,5 mm
Cutting material: HSSE
Surface: Uncoated
Hole type: Blind hole ≤ 2.5xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: C
Length: 100 mm
Cutting edge length: 14 mm
Core hole diameter: 10,50 mm
Shank diameter: 9 mm
Shank square: 7 mm
Thread type: Metric fine thread
Twist angle: 40° (right)
DIN: 374
Coolant supply: External
Nominal diameter: 12 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting
