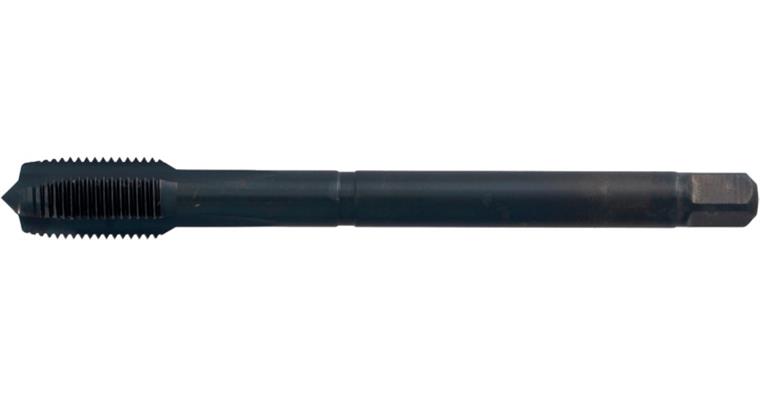

ATORN machine tap, HSSE, vaporised, 0°, shape B, MF6x0.75 6H

ATORN machine tap, HSSE, vaporised, 0°, shape B, MF6x0.75 6H

ATORN machine tap, HSSE, vaporised, 0°, shape B, MF6x0.75 6H
Item no: 1014530 104

Online price:

Available in 6-8 working days.

Application
For producing fine metric threads on CNC machines or conventional machines in through holes in steel, stainless steel, non-ferrous metals, cast iron and special alloys up to 1,200 N/mm².

Advantage
  • Ideal for long service life requirements and materials that are difficult to machine, such as stainless steel
  • Innovative rake ensures high process reliability even under difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric fine thread
Thread type x nominal diameter: MF6
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 80 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 0,75 mm
Twist angle: 0°
DIN: 374
Shank diameter: 4,5 mm
Core hole diameter: 5,2 mm
Type: UNI MAX 45 Control
Coolant supply: External
Shank square: 3,4 mm
Overall stainless steel suitability (ISO M): 0
fitness not iron total (ISO N): 0
fitness Titan/Nickel/Super total (ISO S): 0

ATORN-No.: 10487396

EAN no.: 4066107016814

Product Datasheet
