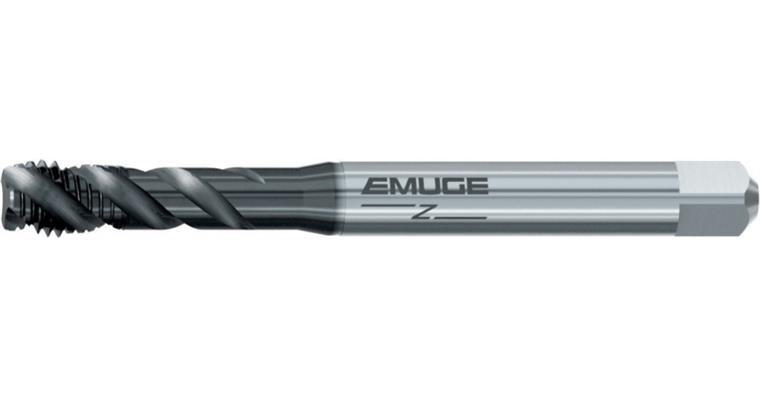

Maschinen-Gewindebohrer Enorm 1-Z/E-X-PM-GLT-1 1/4-20 UNC-2BX

Maschinen-Gewindebohrer Enorm 1-Z/E-X-PM-GLT-1 1/4-20 UNC-2BX

Maschinen-Gewindebohrer Enorm 1-Z/E-X-PM-GLT-1 1/4-20 UNC-2BX
Item no: 1014561 205

Online price:

Available in 5-7 working days.

Application
- UNC-Gewinde
- Grundlöcher
- Max. Bohrtiefe 3xD
- Für universelle Anwendung in nahezu allen Werkstoffen

Execution
  • Für den Einsatz in CNC-gesteuerten Maschinen ausgelegt.
  • Erhöhte Toleranz für mehr Standweg in abrasiven oder klemmenden Werkstoffen.
  • Konisch abgesetztes Führungsgewinde
  • Längere Nuten
  • DIN-Anschnitt Form E (1,5-2 Gänge)
  • HSSE-PM GLT-1


Brand: EMUGE
Material to be processed: Universal use
Thread type x nominal diameter in inches: UNC 1/4 in
Max. thread depth: 3xD
Thread dimension: 1/4 inch - 20UNC
Number of thread starts per inch: 20
Cutting material: HSSE-PM
Surface: TiAlN plus
Hole type: Blind hole ≤ 3xD
Tolerance of screw taps (Tol.): 2BX
Lead angle shape: E
Length: 80 mm
Cutting edge length: 13 mm
Core hole diameter: 5,10 mm
Shank diameter: 7,0 mm
Shank square: 5,5 mm
Thread type: UNC
Type: GLT-1
Twist angle: 45° (right)
Coolant supply: External
Nominal diameter in inches: 1/4 in
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Manufacturer part no.: B582A601.5009

Product Datasheet Datasheet cutting values
