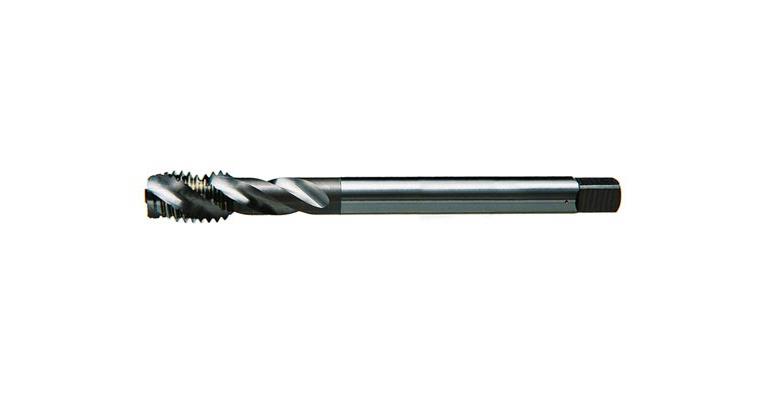

Blind hole screw tap UNC DIN 2184-1 40° shape C 2.5xD HSS-E 9/16 inch

Blind hole screw tap UNC DIN 2184-1 40° shape C 2.5xD HSS-E 9/16 inch

Blind hole screw tap UNC DIN 2184-1 40° shape C 2.5xD HSS-E 9/16 inch
Item no: 1014571 214

Online price:

Available in 6-8 working days.

Application
- UNC thread
- Blind holes
- Max. drilling depth 2.5xD
- Steels up to 800 N/mm²

Execution
  • DIN 2184-1
  • Right-hand spiral flute approx. 40°
  • DIN chamfer shape C (2-3 turns)
  • HSS-E


Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter in inches: UNC 9/16 in
Max. thread depth: 2.5xD
Thread dimension: 9/16 inch - 12UNC
Number of thread starts per inch: 12
Cutting material: HSSE
Surface: Uncoated
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 110 mm
Cutting edge length: 25 mm
Core hole diameter: 12,25 mm
Shank diameter: 11 mm
Shank square: 9 mm
Thread type: UNC
Twist angle: 40° (right)
Coolant supply: External
Nominal diameter in inches: 9/16 in
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting
