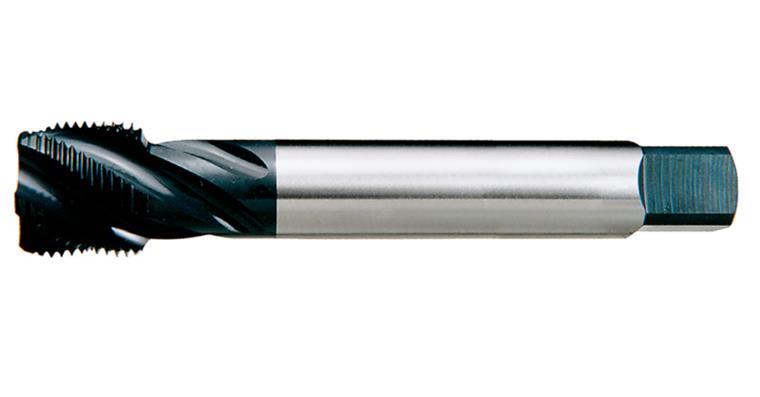

Blind hole screw tap G DIN 5156 40° shape C 2.5xD HSS-E VA-OX VA stl 1.1/4 inch

Blind hole screw tap G DIN 5156 40° shape C 2.5xD HSS-E VA-OX VA stl 1.1/4 inch

Blind hole screw tap G DIN 5156 40° shape C 2.5xD HSS-E VA-OX VA stl 1.1/4 inch
Item no: 1014601 110

Online price:

Available in 6-8 working days.

Application
- Whitworth pipe thread
- Blind holes
- Max. drilling depth 2.5xD
- VA steels up to 1,200 N/mm²

Execution
  • Increased wear resistance thanks to the OX coating
  • DIN 5156-DIN ISO 228
  • Right-hand spiral flute approx. 40°
  • DIN chamfer shape C (2-3 turns)
  • HSS-E VA-OX


Brand: LIZZARD
Material to be processed: Stainless steel
Thread type x nominal diameter in inches: G 1-1/4 in
Max. thread depth: 2.5xD
Thread dimension: G 1 1/4 inch - 11
Number of thread starts per inch: 11
Cutting material: HSSE
Surface: Oxidised
Hole type: Blind hole ≤ 2.5xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: C
Length: 170 mm
Cutting edge length: 30 mm
Core hole diameter: 39,25 mm
Shank diameter: 32 mm
Shank square: 24 mm
Thread type: Pipe thread
Twist angle: 40°
DIN: 5156
Coolant supply: External
Nominal diameter in inches: 1-1/4 in
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

EAN no.: 4024496025008

Product Datasheet
