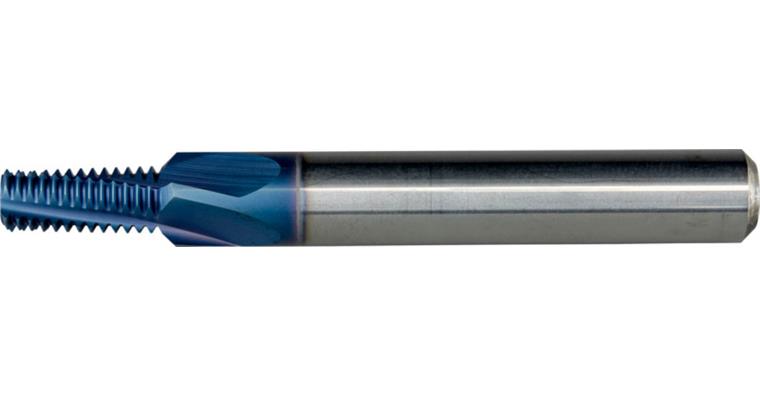

VHM-Gewindefräser Steigung 1,5 mm MF l=21,8 mm

Versions

Item no: 1014615 109

Online price:

Catalogue price: You save:

sold out

Min. order quantity: 1

Application
Zum Gewindefräsen und für Senkfräsen.

Execution

VHM-Ultra-Feinstkorn AMT9
TiAlN-Beschichtung mit erhöhter Abriebfestigkeit

Advantage
Reduzierte Bearbeitungszeit
Kleinere Späne für erhöhte Prozesssicherheit
Verkürzte Bearbeitungszeit
Höhere Produktivität

Brand: ATORN
Material to be processed: Hard material
Cutting material: SC
Surface: TiAlN
Hole type: Clearance/blind hole ≤ 2xD
Coolant supply: External
Tool holding device: HA parallel shank
Cutting edge diameter (d1): 10,0 mm
Pitch: 1,5 mm
Length (l1): 84 mm
Effective length of thread milling (l2): 21,8 mm
Shank diameter: 12 mm
Number of cutting edges: 4 PCS
Max. thread depth: 2xD
Tolerance of shank diameter: h6
Colour ring system: Hard materials
Countersink diameter (Df): 11,8 mm
Machining type: Inside
Rockwell hardness, HRC: 65 HRC
Shank style: Cylindrical DIN 6535-HA
Type: M / MF

Product Datasheet
