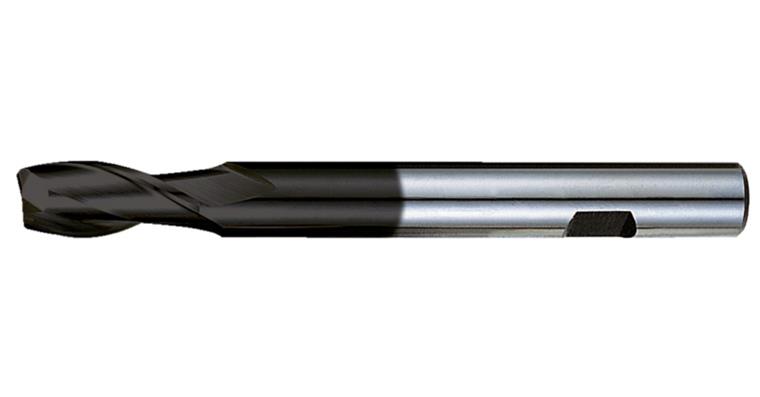

Bohrnutenfräser Typ N lang DIN 327D 2 Schneiden HSS-E/TiAlN Ø 5,0 mm

Bohrnutenfräser Typ N lang DIN 327D 2 Schneiden HSS-E/TiAlN Ø 5,0 mm

Bohrnutenfräser Typ N lang DIN 327D 2 Schneiden HSS-E/TiAlN Ø 5,0 mm
Item no: 1016074 206

Online price:

Available in 6-8 working days.

Execution
  • Lang
  • Rechtsschneidend
  • Rechtsdrall 30°
  • 2 Schneiden
  • Zentrumschnitt
  • Zylinderschaft mit Mitnahmefläche nach DIN 1835 B
  • TiAlN-beschichtet

Advantage
Keine Rundschliff-Fase, dadurch bessere Abstützung und freier Schnitt


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 5 mm
Cutting edge length: 13 mm
Length: 68 mm
Shank diameter: 6 mm
Number of cutting edges (Z): 2 PCS
Twist angle: 30°
Type: N
Construction length: Normal
Coolant supply: External
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
Tolerance of cutting edge diameter: e8
Tolerance of shank diameter: h6

Versions
