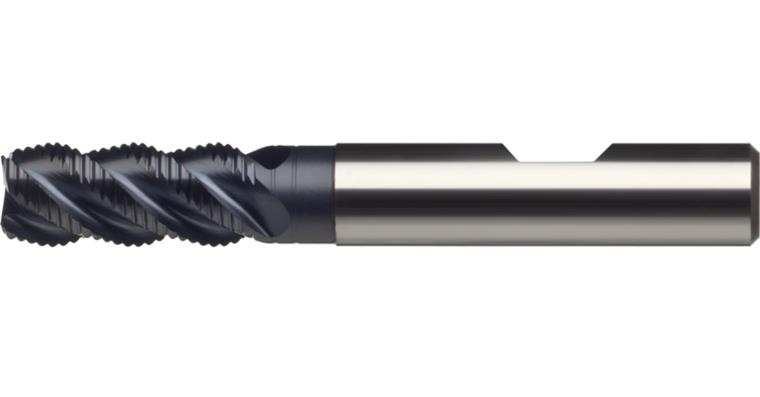

ATORN roughing cutter HSSE-PM-TiAlN 25.0 x 45 x 121 mm DIN 1835B shaft

ATORN roughing cutter HSSE-PM-TiAlN 25.0 x 45 x 121 mm DIN 1835B shaft

ATORN roughing cutter HSSE-PM-TiAlN 25.0 x 45 x 121 mm DIN 1835B shaft
Item no: 1016270 225

Online price:

Available in 11-13 working days.

Application
Universal end mill for plunge, groove and slot milling as well as for face and circumferential milling.

Execution
  • HSSE PM
  • Roughing teeth
  • Centre cutting
  • TiAIN-coating for maximum service life
  • Straight shank according to DIN 1835 B


Brand: ATORN
Cutting material: HSSE-PM
Surface: TiAlN
Type: HR
Number of cutting edges (Z): 6 PCS
Twist angle: 45°
Edge protection chamfer length: 0,2 mm
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 25 mm
Cutting edge length: 45 mm
Length: 121 mm
Shank diameter: 25 mm
fz steel 1300: 0,14 mm

ATORN-No.: 11650021

EAN no.: 4050293186932

Product Datasheet Datasheet cutting values
