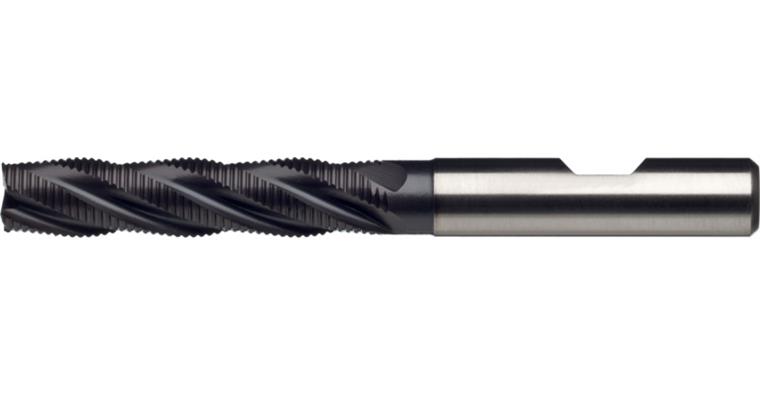

ATORN end mill PM TiAlN, teeth = 4, 6.0 mm, type HR, DIN 1835B long shank

ATORN end mill PM TiAlN, teeth = 4, 6.0 mm, type HR, DIN 1835B long shank

ATORN end mill PM TiAlN, teeth = 4, 6.0 mm, type HR, DIN 1835B long shank
Item no: 1016276 106

Online price:

Available for immediate delivery

Application
Roughing cutter for universal machining.

Execution
  • HSSE PM
  • Roughing teeth
  • Centre cutting
  • TiAIN-coating for maximum service life
  • Straight shank according to DIN 1835 B


Brand: ATORN
Cutting material: HSSE-PM
Surface: TiAlN
Type: HR
Number of cutting edges (Z): 4 PCS
Twist angle: 30°
Edge protection chamfer length: 0,1 mm
Tool holding device: HB parallel shank
Construction length: Long
Cutting edge diameter: 6 mm
Cutting edge length: 24 mm
Length: 68 mm
Shank diameter: 6 mm
fz steel 700: 0,049 mm

ATORN-No.: 11230059

EAN no.: 4050293128444

Product Datasheet Datasheet cutting values
