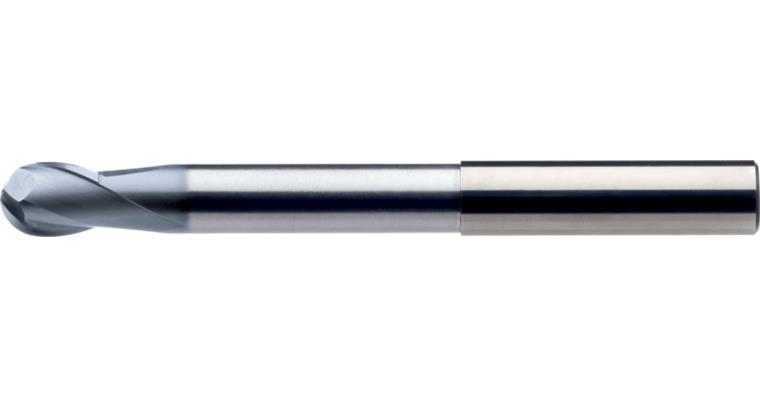

ATORN SC radius cutter diameter 10.0x14x60x100mm, HB 2 cutting edges, ULTRA MS

ATORN SC radius cutter diameter 10.0x14x60x100mm, HB 2 cutting edges, ULTRA MS

ATORN SC radius cutter diameter 10.0x14x60x100mm, HB 2 cutting edges, ULTRA MS
Item no: 1016407 206

Online price:

Still in stock: 2

Application
Radius milling cutter for machining stainless steel, titanium, Ni and Co alloys.

Execution
  • Ultra-fine grain cemented carbide
  • Radius tolerance = 0/-0.010 mm
  • HB straight shank
  • Reinforced core
  • With clearance
  • ULTRA MS high-performance coating
  • Defined cutting edge rounding

Advantage
  • Optimised, positive cutting geometry
  • Excellent chip removal and temperature resistance
  • Maximum service life thanks to ULTRA MS coating


Brand: ATORN
Cutting material: SC
Surface: ULTRA MS
Type: VA
Number of cutting edges (Z): 2 PCS
Twist angle: 30°
Tool holding device: HB parallel shank
Construction length: Long
Cutting edge diameter: 10 mm
Cutting edge length: 14 mm
Clearance length: 60 mm
Length: 100 mm
Clearance diameter: 9,2 mm
Shank diameter: 10 mm
fz stainless steel: 0,044 mm

ATORN-No.: 11861360

EAN no.: 4050293362848

Product Datasheet Datasheet cutting values
