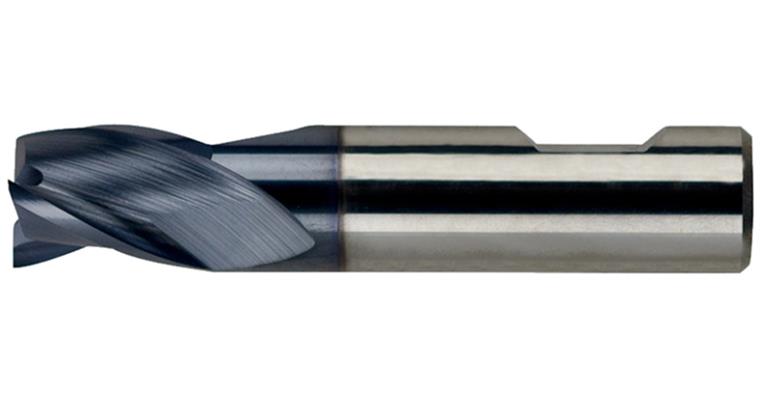

Sol. carb. mini cut. cyl./6535 HB short 3 cut. edges C-cut P20-K40/TiAlN 1.5 mm

Sol. carb. mini cut. cyl./6535 HB short 3 cut. edges C-cut P20-K40/TiAlN 1.5 mm

Sol. carb. mini cut. cyl./6535 HB short 3 cut. edges C-cut P20-K40/TiAlN 1.5 mm
Item no: 1016502 100

Online price:

Available for immediate delivery

Application
For universal use up to 1300 N/mm²

Execution
  • Centre cutting
  • Eccentric relief grinding

Notes
Re-grinding of cutters with a small cutting-edge diameter is uneconomical. It is therefore more economical to use cutters up to the wear limit and then throw them away. You repeatedly use brand-new cutters and reduce the risk of having to scrap finished pieces.

Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 1,5 mm
Cutting edge length: 4 mm
Length: 35 mm
Shank diameter: 6 mm
Number of cutting edges (Z): 3 PCS
Twist angle: 30° (right)
Center cutting: Yes
Type: N
Construction length: Extra short
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,02 mm
