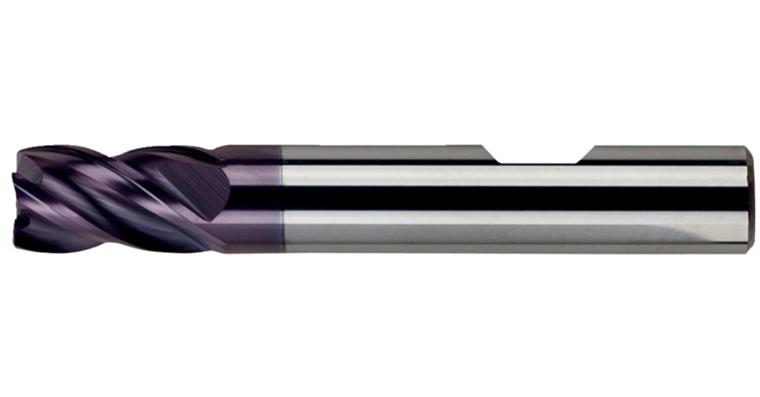

SC end mill STARMAX type H cyl. short 4 cut. edges c-cut P20-K40 18 mm

SC end mill STARMAX type H cyl. short 4 cut. edges c-cut P20-K40 18 mm

SC end mill STARMAX type H cyl. short 4 cut. edges c-cut P20-K40 18 mm
Item no: 1016533 118

Online price:

Available in 6-8 working days.

Application
for use in cast iron, stainless steel and steel up to 1,300 N/mm²

Execution
  • Centre cutting
  • Optimised chip chamber
  • Up to 80 % longer service life and up to 60 % more feed
  • Roughing and finishing with just one tool
  • Low-vibration running

Advantage
  • Uneven twist angle produces smooth, vibration-free running and good surface quality
  • High machining performance can be achieved
  • Roughing and finishing with just one tool


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 18 mm
Cutting edge length: 24 mm
Length: 84 mm
Shank diameter: 18 mm
Edge protection chamfer length: 0,40 mm
Edge protection for chamfer angle: 45 Degree
Number of cutting edges (Z): 4 PCS
Twist angle: 35-38°
Center cutting: Yes
Type: G2
Construction length: Short
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,105 mm
