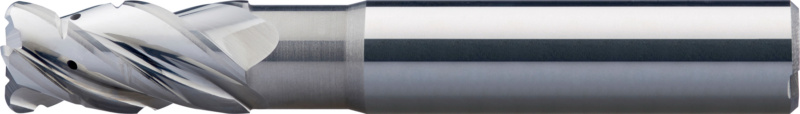

ATORN SC torus milling cutter Z4 HA shaft diameter 12.0 x 26 x 83 mm radius 2.0

ATORN SC torus milling cutter Z4 HA shaft diameter 12.0 x 26 x 83 mm radius 2.0

ATORN SC torus milling cutter Z4 HA shaft diameter 12.0 x 26 x 83 mm radius 2.0
Item no: 1016673 503

Online price:

Still in stock: 9

Application
HPC torus milling cutter with uneven pitch for roughing and finishing of non-ferrous metals with maximum machining performance.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in line with DIN 6535 HA
  • With chip breaker on the end
  • Defined edge rounding of the cutting edge
  • centre cutting
  • Radius tolerance = +/- 0.01 mm
  • Clearance
  • Polish sanding
  • Internal cooling

Advantage
  • Chip breakers on the end ensure short chips for long-chipping materials
  • High material removal rate
  • Uneven pitch and twist reduces vibrations
  • High-gloss polished cutting edges for better chip removal
  • Ideal for NF metals and plastics


Brand: ATORN
Cutting material: SC
Surface: Uncoated
Type: W
Number of cutting edges (Z): 4 PCS
Twist angle: 38° | 41°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 12 mm
Cutting edge length: 26 mm
Clearance length: 36 mm
Length: 83 mm
Clearance diameter: 11 mm
Shank diameter: 12 mm
Edge radius: 2 mm
fz aluminium: 0,139 mm

ATORN-No.: 11869213

EAN no.: 4050293640663

Product Datasheet Datasheet cutting values
