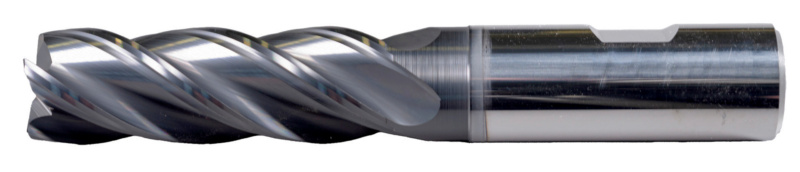

HHW SC HPC end mill INOX long Alcrona Pro HB shank Z4 dia. 12

HHW SC HPC end mill INOX long Alcrona Pro HB shank Z4 dia. 12

HHW SC HPC end mill INOX long Alcrona Pro HB shank Z4 dia. 12
Item no: 1016595 212

Online price:

Available for immediate delivery

Application
For universal roughing and finishing in stainless steels, optimum machining performance even at high cutting speeds. Also suitable for steels up to 1,100 N/mm2.

Execution
  • Unequal cutting edge pitch
  • With 45° edge protection chamfer
  • With clearance

Advantage
  • Extremely smooth running
  • Defined edge rounding for maximum service life
  • Minimal heat generation
  • Optimised geometry
  • Reinforced core diameter


Brand: LIZZARD
Material to be processed: Stainless steel | Universal use
Cutting edge diameter: 12 mm
Cutting edge length: 26 mm
Clearance length: 36 mm
Length: 83 mm
Clearance diameter: 11,6 mm
Shank diameter: 12 mm
Edge protection chamfer length: 0,2 mm
Edge protection for chamfer angle: 45 Degree
Number of cutting edges (Z): 4 PCS
Twist angle: 35-38°
Center cutting: Yes
Type: UNI
Construction length: Normal
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz stainless steel: 0,040 mm
