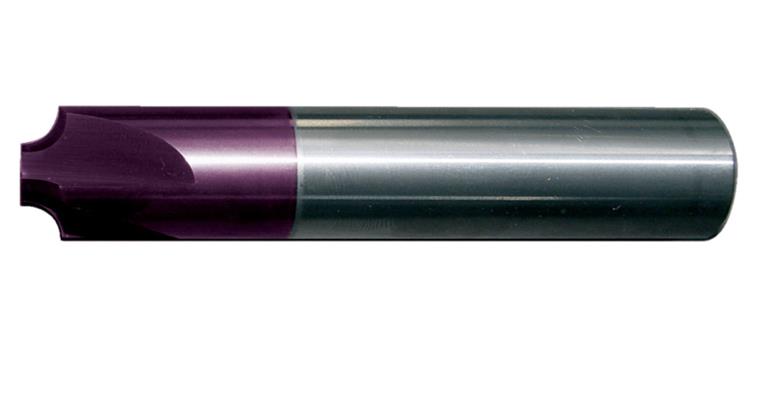

SC quart. circ. cutt. type N, strt-grved, cyl. 4 cut. edges P20-K40/TiAlN 0.5mm

SC quart. circ. cutt. type N, strt-grved, cyl. 4 cut. edges P20-K40/TiAlN 0.5mm

SC quart. circ. cutt. type N, strt-grved, cyl. 4 cut. edges P20-K40/TiAlN 0.5mm
Item no: 1016658 105

Online price:

Still in stock: 5

Application
For materials up to HRC 45. For rounding and deburring edges and contours. For high-strength materials as well as for aluminium and non-ferrous metals.

Execution
  • Straight-grooved
  • With smooth straight shank in accordance with DIN 6535 HA
  • Radius tolerance +/- 0.01 mm
  • Universal carbide ultra-fine grain (P 20–K 40) TiAlN-coated


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 7 mm
Length: 70 mm
Shank diameter: 8 mm
Number of cutting edges (Z): 4 PCS
Corner radius: 0,5 mm
Coolant supply: External
Cutting direction: Right-hand cutting
Tolerance of shank diameter: h6
fz steel 1000: 0,04 mm

EAN no.: 4024496036486

Product Datasheet
