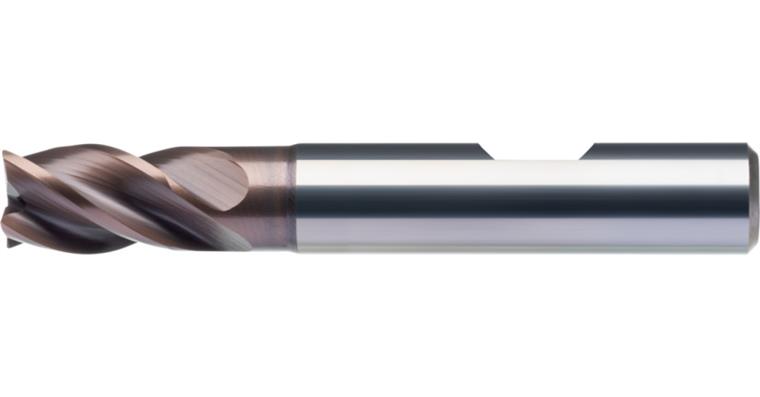

ATORN HPC drill and plunge mill, 10x14x24x66, T4, HB shank, ULTRA-coated

ATORN HPC drill and plunge mill, 10x14x24x66, T4, HB shank, ULTRA-coated

ATORN HPC drill and plunge mill, 10x14x24x66, T4, HB shank, ULTRA-coated
Item no: 1016676 211

Online price:

Still in stock: 9

Application
Ramping, grooving, drilling, roughing and finishing with maximum performance. The special end face geometry allows for ramp angles up to 45° and drilling up to 2xD without a piloting tool. The optimised geometry and carbide material, which is ideal for the operating conditions, ensure optimal chip removal and tool stability.

Execution
  • End face geometry for ramping and drilling
  • Solid carbide ultra-fine grain
  • ULTRA-coated
  • Centre cutting and clearance
  • with 45° edge protection chamfer
  • unequal helix angle

Advantage
  • for greater stability when grooving
  • up to 25 % higher feed rates
  • reduced deflection


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 4 PCS
Tool holding device: HB parallel shank
Construction length: Short
Cutting edge diameter: 10 mm
Cutting edge length: 14 mm
Clearance length: 24 mm
Length: 66 mm
Edge protection chamfer length: 0,1 mm
Clearance diameter: 9,5 mm
Shank diameter: 10 mm
fz steel 1000: 0,08 mm
Overall stainless steel suitability: 1
fitness not iron total: 2
fitness Titan/Nickel/Super total: 2

ATORN-No.: 10487899

EAN no.: 4066107042332

Product Datasheet Datasheet cutting values
