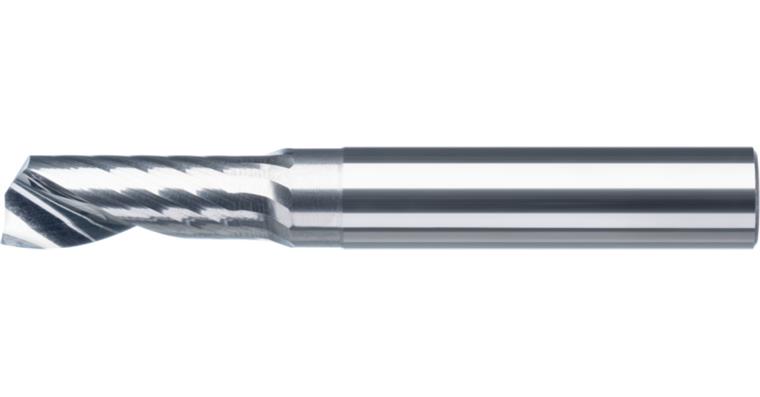

ATORN SC single-tooth milling cutter polished version, diameter 16.0 mm

ATORN SC single-tooth milling cutter polished version, diameter 16.0 mm

ATORN SC single-tooth milling cutter polished version, diameter 16.0 mm
Item no: 1016715 210

Online price:

Available in 6-8 working days.

Application
For milling, plunging and contour milling NF metals and plastics.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in accordance with DIN 6535 HA
  • Uncoated
  • Clearance
  • right-hand cutting
  • Polished design - sharpened edges for even smoother cutting and improved chip removal, in plastics too

Advantage
  • Defined edge rounding for maximum service life
  • Large chip area for optimum chip flow
  • Ideal for NF metals and plastics


Brand: ATORN
Cutting material: SC
Surface: Polished
Type: W
Number of cutting edges (Z): 1 PCS
Twist angle: 30°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 16 mm
Cutting edge length: 38 mm
Clearance length: 45 mm
Length: 93 mm
Clearance diameter: 15,7 mm
Shank diameter: 16 mm
fz aluminium: 0,12 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11263924

EAN no.: 4050293648300

Product Datasheet
