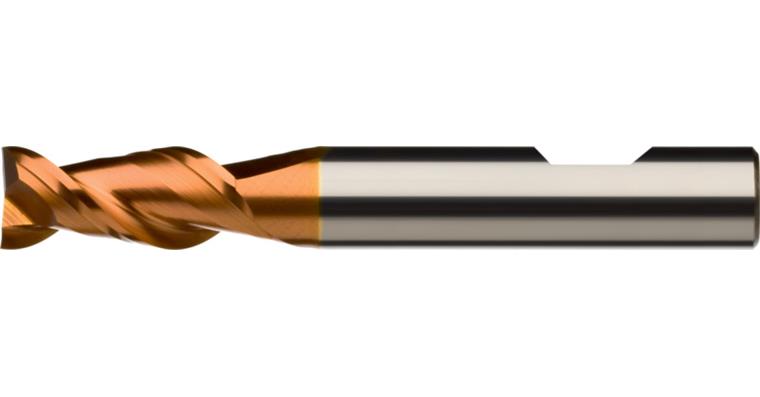

ATORN solid carbide end mill T2 HB, 12.0 x 26 x 36 x 83 mm, coated

ATORN solid carbide end mill T2 HB, 12.0 x 26 x 36 x 83 mm, coated

ATORN solid carbide end mill T2 HB, 12.0 x 26 x 36 x 83 mm, coated
Item no: 1016719 107

Online price:

Will be ordered for you

Application
End mill for plunging and groove milling in NF metals.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in accordance with DIN 6535 HB
  • With edge protection chamfer
  • Defined edge rounding of cutter
  • Centre cutting
  • With clearance
  • ZrCN ULTRA N-coated


Brand: ATORN
Cutting material: SC
Surface: ULTRA N
Type: W
Number of cutting edges (Z): 2 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 12 mm
Cutting edge length: 26 mm
Clearance length: 36 mm
Length: 83 mm
Edge protection chamfer length: 0,2 mm
Clearance diameter: 11,7 mm
Shank diameter: 12 mm
fz aluminium: 0,07 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11263196

EAN no.: 4050293340570

Product Datasheet Datasheet cutting values
