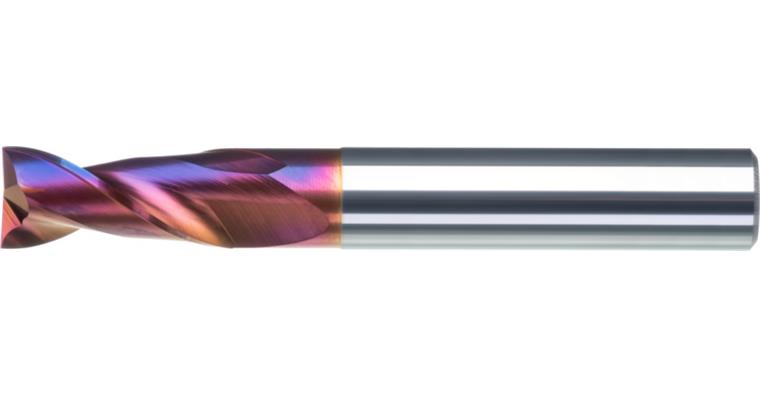

ATORN RockTec PRO end mill, 8x19x27x63 mm T=2 HA

ATORN RockTec PRO end mill, 8x19x27x63 mm T=2 HA

ATORN RockTec PRO end mill, 8x19x27x63 mm T=2 HA
Item no: 1016781 108

Online price:

Available for immediate delivery

Application
End mill for processing materials up to 65 HRC, e.g. in die and mould making.

Execution
  • Ultra Micro fine grain cutting material
  • Cutting edge finish
  • HA shank in line with DIN 6535
  • with clearance
  • Type H
  • With RockTec PRO coating

Advantage
  • optimum chip removal and temperature resistance
  • optimised geometry for machining hard materials
  • maximum service life due to RockTec PRO coating


Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 2 PCS
Twist angle: 35°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 8 mm
Cutting edge length: 19 mm
Clearance length: 27 mm
Length: 63 mm
Edge protection chamfer length: 0,08 mm
Clearance diameter: 7,8 mm
Shank diameter: 8 mm
fz hard 65 HRC: 0,057 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11264661

EAN no.: 4066107032128

Product Datasheet Datasheet cutting values
