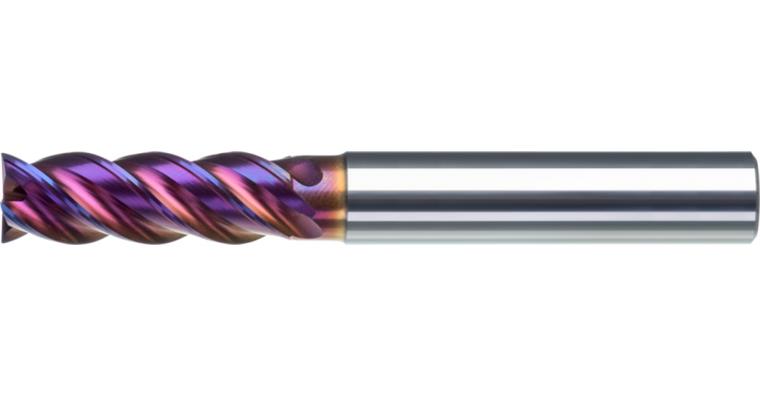

ATORN RockTec PRO HPC end mill, long, KR 12x36x45x93 mm T=4 HA r=0.3

ATORN RockTec PRO HPC end mill, long, KR 12x36x45x93 mm T=4 HA r=0.3

1016781912 ATORN RockTec PRO HPC end mill, long, KR 12x36x45x93 mm T=4 HA r=0.3
Item no: 1016781 912

Online price:

Available for immediate delivery

Application
HPC end mill in long version for machining materials up to 65 HRC, e.g. in die and mould making. Optimal application in trochoidal milling and in edge, corner and groove machining.

Execution
  • Ultra Micro fine grain cutting material
  • Cutting edge finish
  • HA shank in line with DIN 6535
  • with clearance
  • unequal cutting edge pitch
  • optimised cutting edge design
  • Type H
  • With RockTec PRO coating

Advantage
  • optimum chip removal and temperature resistance
  • Optimised geometry for machining hard materials
  • maximum service life due to RockTec PRO coating
  • ideal for static and dynamic trochoidal milling


Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 4 PCS
Twist angle: 45°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 12 mm
Cutting edge length: 36 mm
Clearance length: 45 mm
Length: 93 mm
Clearance diameter: 11 mm
Shank diameter: 12 mm
fz hard 65 HRC: 0,077 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11264647

EAN no.: 4066107031985

Product Datasheet Datasheet cutting values
