ATORN SC mini radius cutter TiAlSiN 2.5x2x75 mm clearance 2.41x40 mm

ATORN SC mini radius cutter TiAlSiN 2.5x2x75 mm clearance 2.41x40 mm

ATORN SC mini radius cutter TiAlSiN 2.5x2x75 mm clearance 2.41x40 mm
Item no: 1016790 199

Online price:

Still in stock: 3

Application
Mini radius cutter with long neck for machining materials up to 65 HRC.

Execution
  • Cutting material, Ultra Micro fine grain
  • cutting edge finish
  • HA shaft in line with DIN 6535
  • Clearance
  • type H
  • With RockTec PRO coating
  • Radius tolerance = 0/-0.005 mm

Advantage
  • optimum chip removal and temperature resistance
  • Optimised geometry for machining hard materials
  • maximum service life thanks to RockTec PRO coating


Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 2 PCS
Twist angle: 20°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 2,5 mm
Cutting edge length: 2 mm
Clearance length: 40 mm
Length: 75 mm
Clearance diameter: 2,41 mm
Shank diameter: 4 mm
fz hard 65 HRC: 0,021 mm

ATORN-No.: 11264413

EAN no.: 4050293656428

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

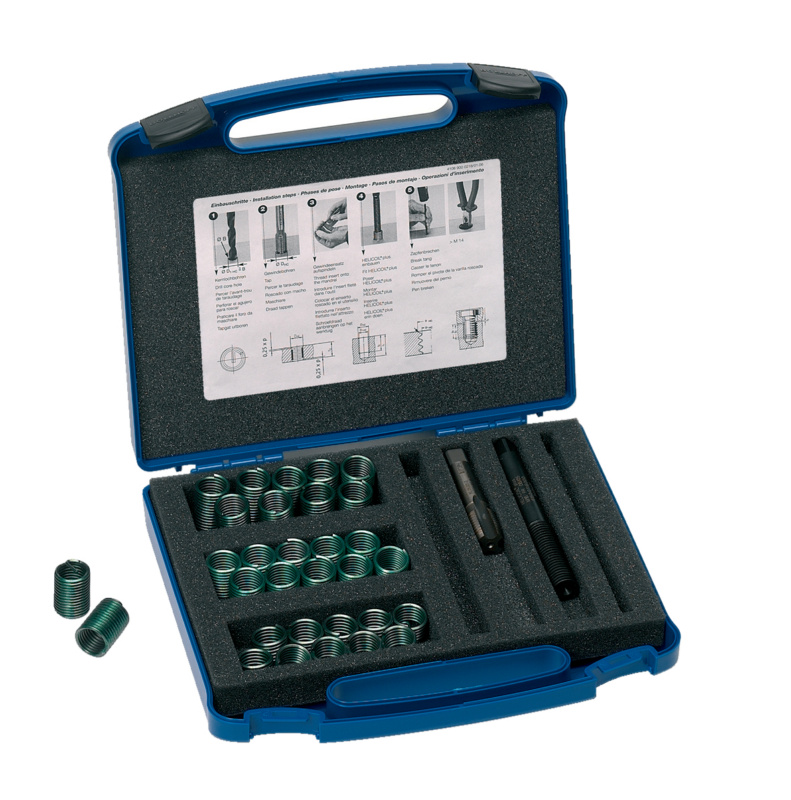

  • HeliCoil plus repair packs 30 stainless steel inserts M16 x 24
  •
