ATORN SC end mill standard diameter 20.0 x 38 x 58 x 100 mm T=4 RT52

ATORN SC end mill standard diameter 20.0 x 38 x 58 x 100 mm T=4 RT52

ATORN SC end mill standard diameter 20.0 x 38 x 58 x 100 mm T=4 RT52
Item no: 1016810 109

Online price:

Available in 8-10 working days.

Application
End mill in a standard design for machining materials up to 52 HRC, e.g. in dip working and mould forming.

Execution
  • Solid carbide ultra-fine grain
  • Cutting edge finish
  • HA shank pursuant to DIN 6535
  • With clearance
  • Type N
  • Chip angle 3°
  • RockTec 52-coated

Advantage
  • Excellent chip removal and temperature resistance
  • Maximum service life thanks to RockTec 52 coating


Brand: ATORN
Cutting material: SC
Surface: RockTec 52
Type: N
Number of cutting edges (Z): 4 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 20 mm
Cutting edge length: 38 mm
Clearance length: 58 mm
Length: 100 mm
Clearance diameter: 19 mm
Shank diameter: 20 mm
fz steel 1300: 0,16 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11860188

EAN no.: 4050293195279

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN SC end mill, standard, diameter 20.0 x 38 x 58 x 100 mm, T=4 RT65
    222,00 €

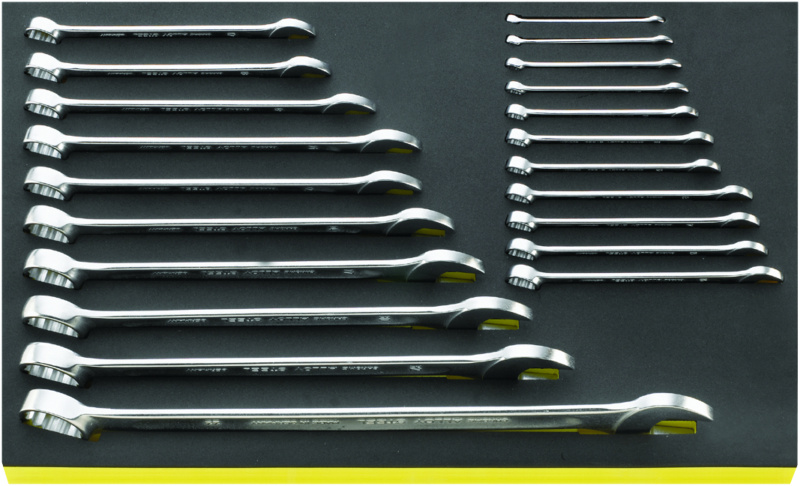

  • TCS combination spanner set DIN 3113 A, ISO 7738 A, AS drive, 17 pcs, AF 6-24 mm
  •
    Octagonal stone chisel DIN 7254 B CV air-hardening steel, 30x400 mm
  •

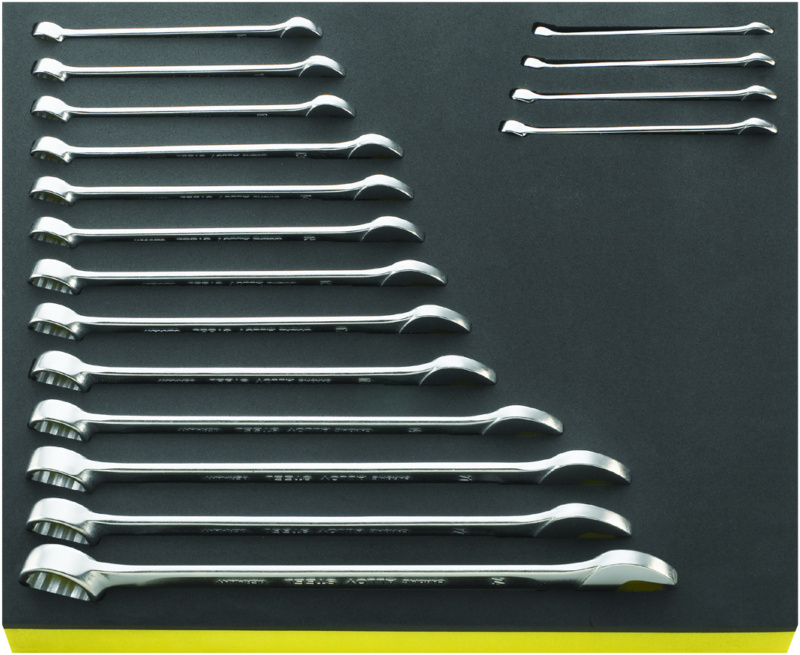

    TCS combination spanner set DIN 3113 A, ISO 7738 A, AS drive, 18 pcs, AF 6-24 mm
  •
