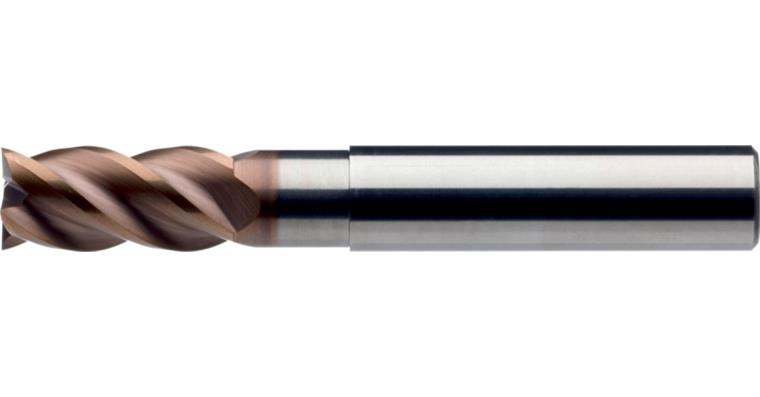

ATORN SC end mill, standard, diameter 10.0 x 22 x 32 x 70 mm, T=4 RT65

ATORN SC end mill, standard, diameter 10.0 x 22 x 32 x 70 mm, T=4 RT65

ATORN SC end mill, standard, diameter 10.0 x 22 x 32 x 70 mm, T=4 RT65
Item no: 1016810 306

Online price:

Available for immediate delivery

Application
End mill in a standard design for machining materials up to 65 HRC, e.g. dip cutting and mould construction.

Execution
  • Solid carbide ultra-fine grain
  • Cutting edge finish
  • HA shank in accordance with DIN 6535
  • With clearance
  • Type H
  • Chip angle -6°
  • RockTec 65-coated

Advantage
  • Excellent chip removal and temperature resistance
  • Maximum service life thanks to RockTec 65 coating


Brand: ATORN
Cutting material: SC
Surface: RockTec 65
Type: H
Number of cutting edges (Z): 4 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 10 mm
Cutting edge length: 22 mm
Clearance length: 32 mm
Length: 70 mm
Clearance diameter: 9,2 mm
Shank diameter: 10 mm
fz hard 52 HRC: 0,08 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11860585

EAN no.: 4050293198553

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN SC mini end mill, long, 1.5 x 2.3 x 8 x 50 mm T2 RT65
  •
    ATORN SC mini end mill, long, diameter 2.5 x 3.7 x 8 x 50 mm T=2 RT65
    37,40 €
  • ATORN SC end mill standard diameter 10.0 x 22 x 32 x 70 mm T=4 RT52
    71,20 €
  • ATORN SC end mill standard diameter 12.0 x 25 x 37 x 75 mm T=4 RT52
  •
    ATORN SC end mill standard diameter 16.0 x 32 x 46 x 90 mm T=4 RT52
    142,50 €
  • ATORN SC end mill, standard, diameter 12.0 x 25 x 37 x 75 mm, T=4 RT65
    98,50 €
  • ATORN SC end mill, standard, diameter 16.0 x 32 x 46 x 90 mm, T=4 RT65
    157,50 €
  • Shrink-fit chuck DIN 69893 shape A HSK63 diameter 14 x 90 mm
  •
    Pin wrench set PocketStar 9 pieces slotted 4.5 PH 2 hex socket 3-6 mm TX 10-20
    22,04 €
  • Tungsten electrodes Type W, W 99.99%, green, dia. 1.6 mm, L=178 mm, pack of 10
    48,14 €

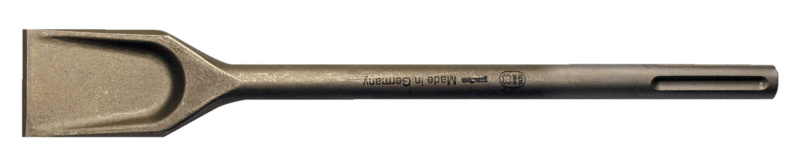

  • Spade chisel SDS-max chuck length 400 mm width 50 mm quenched and tempered steel
  •
