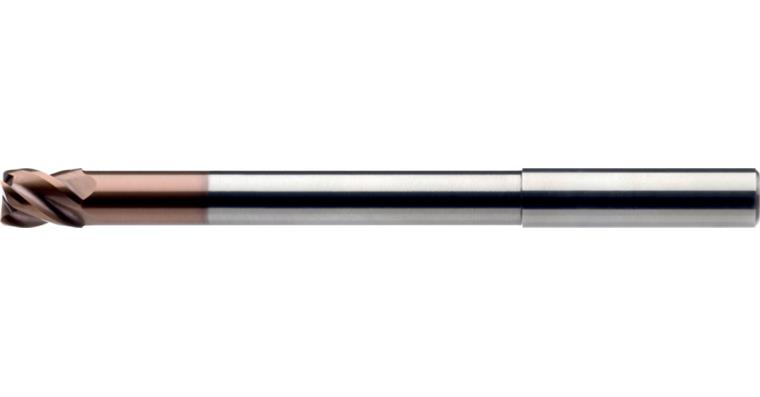

ATORN solid carbide end mill, X-long diameter 4.0 x 8 x 60 x 100 mm, T=4 RT65

ATORN solid carbide end mill, X-long diameter 4.0 x 8 x 60 x 100 mm, T=4 RT65

ATORN solid carbide end mill, X-long diameter 4.0 x 8 x 60 x 100 mm, T=4 RT65
Item no: 1016813 302

Online price:

Still in stock: 6

Application
End mill, extra long, with short cutters for machining materials up to 65 HRC, e.g. in dip cutting and mould construction.

Execution
  • Solid carbide ultra-fine grain
  • Cutting edge finish
  • HA shank in accordance with DIN 6535
  • With clearance
  • Type H
  • Chip angle -6°
  • RockTec 65-coated

Advantage
  • Excellent chip removal and temperature resistance
  • Maximum service life thanks to RockTec 65 coating


Brand: ATORN
Cutting material: SC
Surface: RockTec 65
Type: H
Number of cutting edges (Z): 4 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Extra long
Cutting edge diameter: 4 mm
Cutting edge length: 8 mm
Clearance length: 60 mm
Length: 100 mm
Clearance diameter: 3,7 mm
Shank diameter: 6 mm
fz hard 52 HRC: 0,027 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11860599

EAN no.: 4050293198690

Product Datasheet
