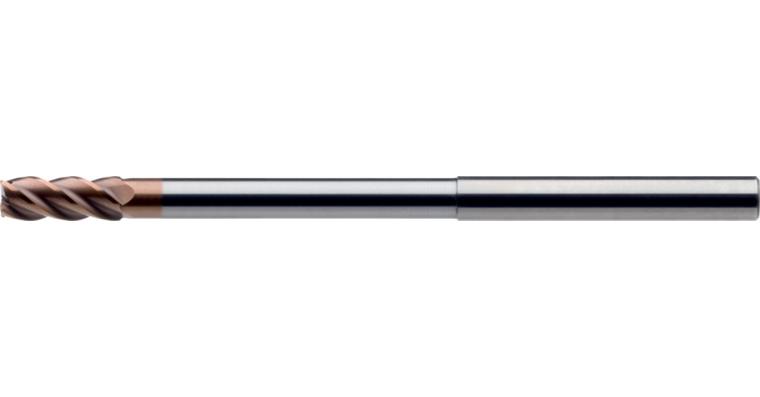

ATORN SC torus milling cutter, extra-long, Ø 12.0x16x110x150mm r1.0 T=4 RT65

ATORN SC torus milling cutter, extra-long, Ø 12.0x16x110x150mm r1.0 T=4 RT65

ATORN SC torus milling cutter, extra-long, Ø 12.0x16x110x150mm r1.0 T=4 RT65
Item no: 1016819 313

Online price:

Available in 8-10 working days.

Application
Torus milling cutter, extra-long, with short blade for processing materials up to 65 HRC, e.g. for die and mould making.

Execution
  • Solid carbide ultra-fine grain
  • Cutting edge finish
  • HA shank in line with DIN 6535
  • With clearance
  • Type H
  • Chip angle -5° -7°
  • RockTec 65-coated
  • Radius tolerance = 0/-0.010 mm

Advantage
  • Best chip removal and temperature resistance
  • RockTec 65 coating for maximum service life


Brand: ATORN
Cutting material: SC
Surface: RockTec 65
Type: H
Number of cutting edges (Z): 4 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Extra long
Cutting edge diameter: 12 mm
Cutting edge length: 16 mm
Clearance length: 110 mm
Length: 150 mm
Clearance diameter: 11 mm
Shank diameter: 12 mm
Edge radius: 1 mm
fz hard 52 HRC: 0,07 mm

ATORN-No.: 11860677

EAN no.: 4050293199475
