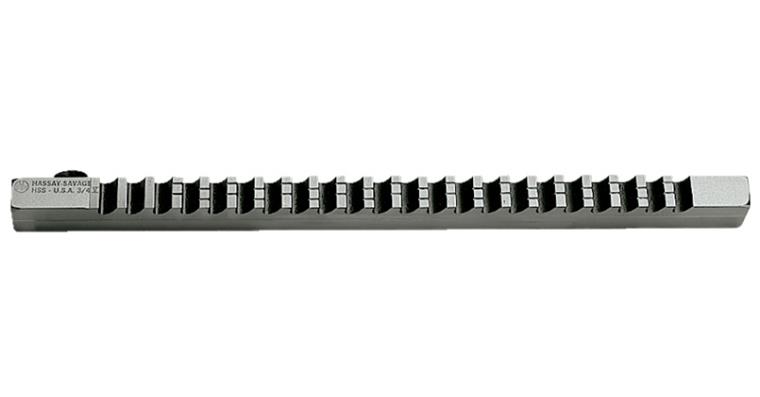

Push broach (keyways broach) HSS type RD IV for groove 10 mm

Versions

Item no: 1016881 108

Online price:

Catalogue price: You save:

Still in stock: 3

Min. order quantity: 1

Application
For the production of keyways in accordance with DIN 6885. For cast iron, steel, brass and aluminium. Use especially on manually operated arbor presses. Clear specification of a groove for hole and the groove depth through the guide bush and inserts.

Execution

Chip angle 8–10°
Each broach complete with inserts (e.g. for 3 strokes = 2 inserts)
Art. no. 1016881 101: without insert

Advantage
Short sweeping time (60 seconds), short setup time and easy handling

Delivery
Without guide bushes (see art. no. 1016882)

Brand: LIZZARD
Type description (Typ): RD IV
Groove width (b1): 10 mm
Width (b2): 14,29 mm
Length (l1): 352 mm
Length 2 (l2): 65 mm
Length 3 (l3): 33 mm
Height (h1): 23,99 mm
Height 2 (h2): 22,29 mm
Groove depth: 3,50 mm
Min./max. bore diameter: 30-38 mm
Min./max. room length: 20-150 mm
Number of passages: 3 PCS
Max. clearing length: 150 mm
Min. clearing length: 20 mm
Tolerance of workpiece slot width: JS9

EAN no.: 4046368114108
