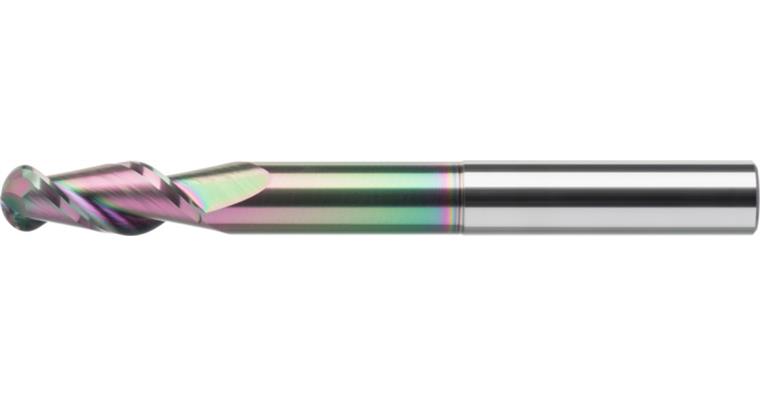

ATORN solid carbide radius cutter Z2 HA shaft diameter 12.0 x 26 x 100 mm

ATORN solid carbide radius cutter Z2 HA shaft diameter 12.0 x 26 x 100 mm

ATORN solid carbide radius cutter Z2 HA shaft diameter 12.0 x 26 x 100 mm
Item no: 1016897 107

Online price:

Still in stock: 1

Application
Long radius cutter for machining non-ferrous metals.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in line with DIN 6535 HA
  • ULTRA-N PRO coated
  • Radius tolerance = +/- 0.001 mm
  • Defined edge rounding of the cutting edge
  • centre cutting
  • Clearance

Advantage
  • Ultra-smooth coating
  • Excellent chip removal
  • defined edge rounding for maximum service life
  • Large chip area for optimum chip flow
  • Ideal for NF metals and plastics


Brand: ATORN
Cutting material: SC
Surface: ULTRA N PRO
Type: W
Number of cutting edges (Z): 2 PCS
Twist angle: 45°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 12 mm
Cutting edge length: 26 mm
Clearance length: 60 mm
Length: 100 mm
Clearance diameter: 11,7 mm
Shank diameter: 12 mm
fz aluminium: 0,16 mm

ATORN-No.: 12040841

EAN no.: 4050293628890

Product Datasheet Datasheet cutting values
