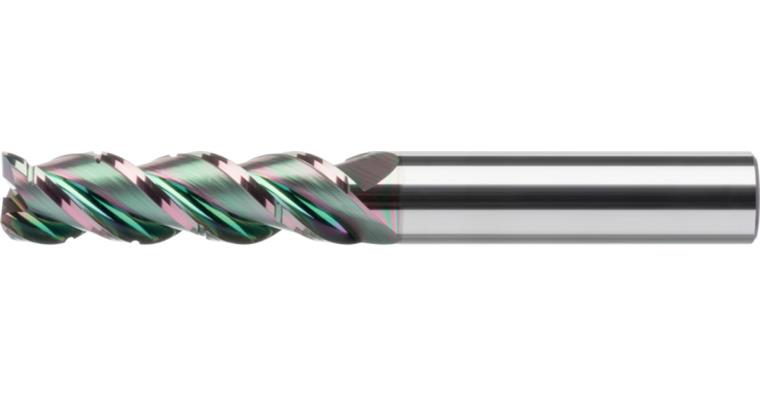

ATORN solid carbide TVC end mill Z3 HB shaft diameter 12x42x93 mm

ATORN solid carbide TVC end mill Z3 HB shaft diameter 12x42x93 mm

ATORN solid carbide TVC end mill Z3 HB shaft diameter 12x42x93 mm
Item no: 1016899 110

Online price:

Still in stock: 7

Application
The TVC end mills are optimally suited for processing with modern milling strategies. Cutting edge lengths of 3.5xD, reinforced cores and specially developed chip breaker geometries allow high working depths with maximum process reliability.

Execution
  • solid carbide ultra-fine grain
  • straight shank in line with DIN 6535 HB
  • ULTRA-N PRO-coated
  • with edge protection chamfer
  • Defined edge rounding of the cutting edge
  • centre cutting
  • Polish sanding

Advantage
  • Ultra-smooth coating thickness
  • Excellent chip removal
  • defined edge rounding for maximum service life
  • Large chip area for optimum chip flow
  • Ideal for NF metals and plastics


Brand: ATORN
Cutting material: SC
Surface: ULTRA N PRO
Type: W
Number of cutting edges (Z): 3 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Long
Cutting edge diameter: 12 mm
Cutting edge length: 42 mm
Length: 93 mm
Edge protection chamfer length: 0,2 mm
Shank diameter: 12 mm
fz aluminium: 0,11 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 12041000

EAN no.: 4050293716580

Product Datasheet
