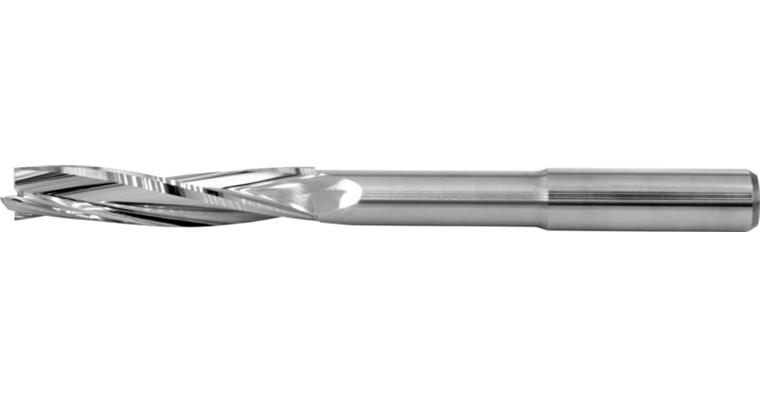

ATORN SC milling cutter for foam diameter 3.0 mm 75 x 20 x 40 mm t=3

ATORN SC milling cutter for foam diameter 3.0 mm 75 x 20 x 40 mm t=3

ATORN SC milling cutter for foam diameter 3.0 mm 75 x 20 x 40 mm t=3
Item no: 1016908 101

Online price:

Available in 4-6 working days.

Application
For milling, recessing and contour milling of foams, especially PE and PUR

Execution
  • Solid carbide ultra-fine grain
  • Straight shank in line with DIN 6535 HA
  • with clearance
  • with protective chamfer
  • uncoated
  • Surface polished

Advantage
  • Steep spiral for good chip removal
  • Optimum surfaces for pocket milling


Brand: ATORN
Cutting material: SC
Surface: Uncoated
Type: W
Number of cutting edges (Z): 3 PCS
Twist angle: 15°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 3 mm
Cutting edge length: 20 mm
Clearance length: 40 mm
Length: 75 mm
Edge protection chamfer length: 0,05 mm
Shank diameter: 3 mm
fz aluminium: 0,032 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 10440619

EAN no.: 4050293438765

Product Datasheet
