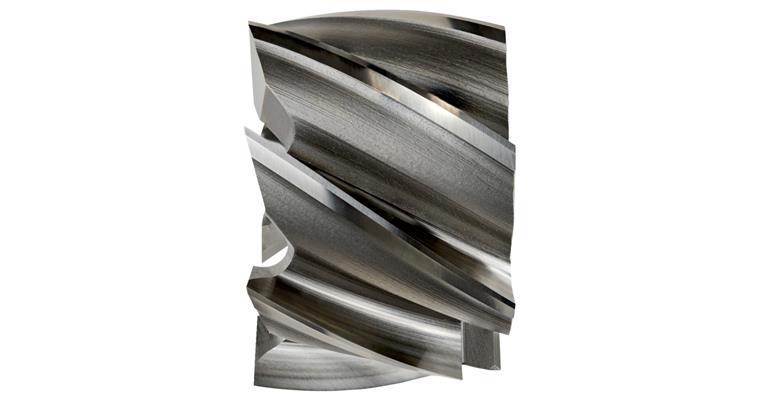

Shell end mill DIN 1880 type N HSS-E 50x36 mm

Shell end mill DIN 1880 type N HSS-E 50x36 mm

Shell end mill DIN 1880 type N HSS-E 50x36 mm
Item no: 1017441 102

Online price:

Still in stock: 8

Application
For normally machinable materials of medium hardness up to approx. 1000 N/mm² strength.

Execution
  • Right-cutting
  • Right-hand twist
  • For cutting on periphery and end face
  • With longitudinal and transverse groove according to DIN 138


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 50 mm
Height: 16 mm
Bore diameter: 22 mm
Number of cutting edges (Z): 8 PCS
Type: N
Coolant supply: External
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
Tolerance of cutting edge diameter: k12
Tolerance of milling tool width: k16
Tolerance of hole diameter: H7

Versions
