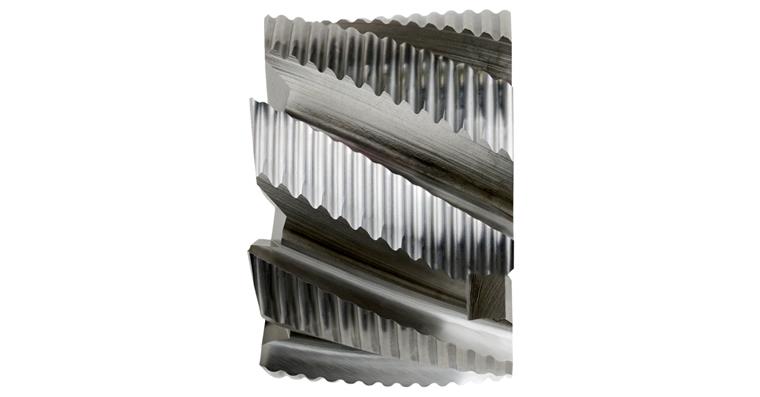

Shell end roughing cutter DIN 1880 type HR HSS-E 100x50 mm

Shell end roughing cutter DIN 1880 type HR HSS-E 100x50 mm

Shell end roughing cutter DIN 1880 type HR HSS-E 100x50 mm
Item no: 1017482 105

Online price:

Available in 11-13 working days.

Application
For materials up to approx. 1200 N/mm2 strength, with higher machining performance.

Execution
  • Fine roughing profile
  • Right-cutting
  • Right-hand twist
  • For cutting on periphery and end face
  • Profile relief ground
  • With longitudinal and transverse groove according to DIN 138


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 100 mm
Height: 50 mm
Bore diameter: 32 mm
Number of cutting edges (Z): 12 PCS
Type: HR
Coolant supply: External
Design of cutting edges: Roughing
Cutting direction: Right-hand cutting
Tolerance of cutting edge diameter: k14
Tolerance of milling tool width: k16
Tolerance of hole diameter: H7
