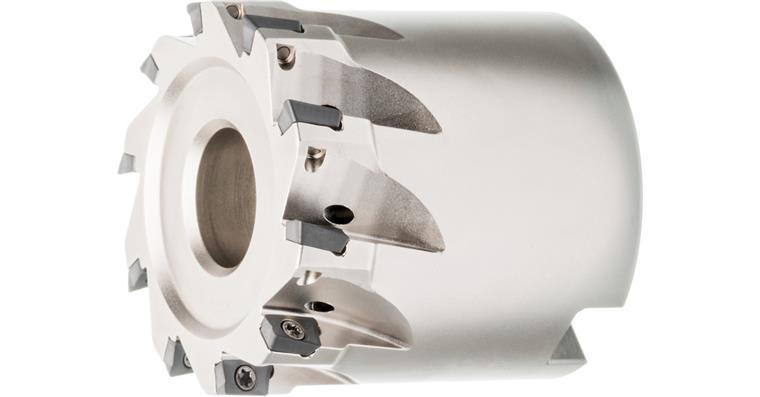

ATORN indexable insert angular milling cutter, diameter 40.0 mm T=10

ATORN indexable insert angular milling cutter, diameter 40.0 mm T=10

ATORN indexable insert angular milling cutter, diameter 40.0 mm T=10
Item no: 1017500 141

Online price:

Available in 5-7 working days.

Application
For universal use in all materials.

Execution
  • Wear-resistant, nickel-plated version
  • With internal cooling
  • Clamping screw tightening torque (indexable insert) M1.8 = 0.7 Nm


Brand: ATORN

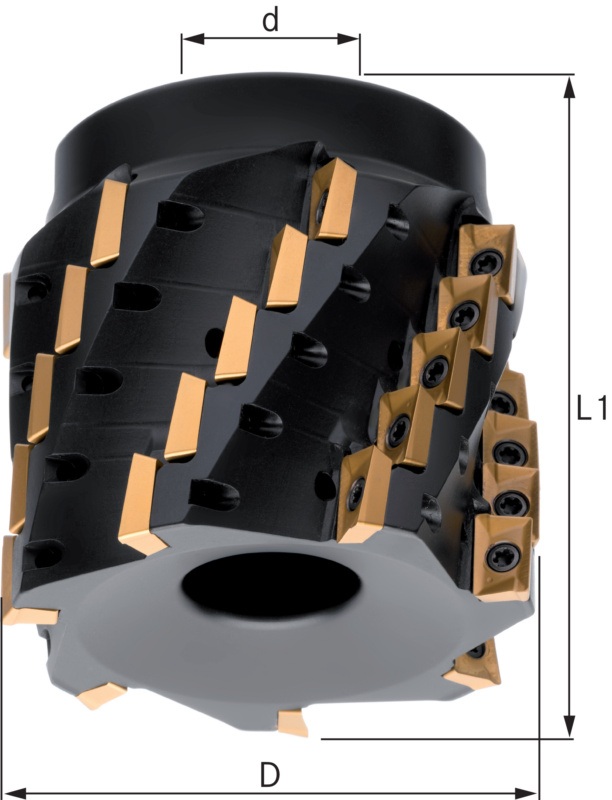

Cutting edge diameter (D): 40 mm
Length (L1): 40 mm
Bore diameter (d): 16 mm
max. ap: 5,2 mm
Number of cutting edges: 10 PCS
Suitable for indexable inserts: AP.. 0602..

ATORN-No.: 12230323

EAN no.: 4050293433869

Product Datasheet
