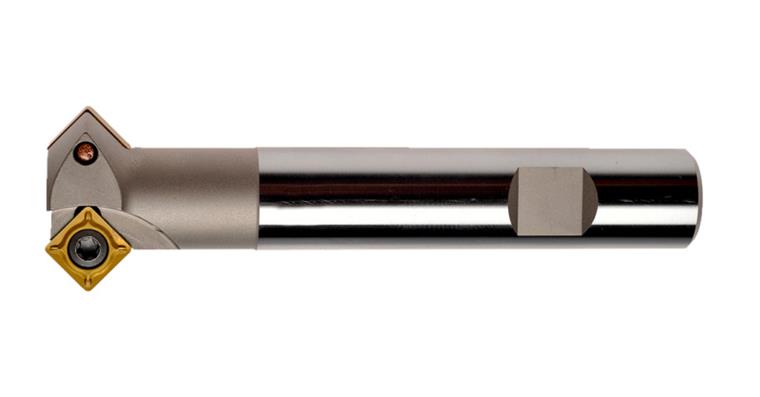

Chamfer cutter 45° with Weldon shank 1835 B ISO-II SCMT D 30L mm

Chamfer cutter 45° with Weldon shank 1835 B ISO-II SCMT D 30L mm

Chamfer cutter 45° with Weldon shank 1835 B ISO-II SCMT D 30L mm
Item no: 1017529 108

Online price:

Available in 4-6 working days.

Application
For chamfer cutting from dia. 4 mm.

Notes
For indexable milling inserts, see art. no. 1018578 et seqq.

Brand: ATORN
Max. cutting edge diameter (ØD2): 42,3 mm
Min. cutting edge diameter (ØD1): 30 mm
Clearance length (H): 32 mm
Length (L): 200 mm
Shank diameter (Ødh6): 20 mm
Number of cutting edges: 3 PCS
Chamfer angle: 45 Degree
Suitable for indexable inserts: SC.. 09T3..
Coolant supply: External
Cutting direction: Right-hand cutting
Surface: Nickel plated
Tool holding device: Cylinder shank

EAN no.: 4050293111989

Product Datasheet
