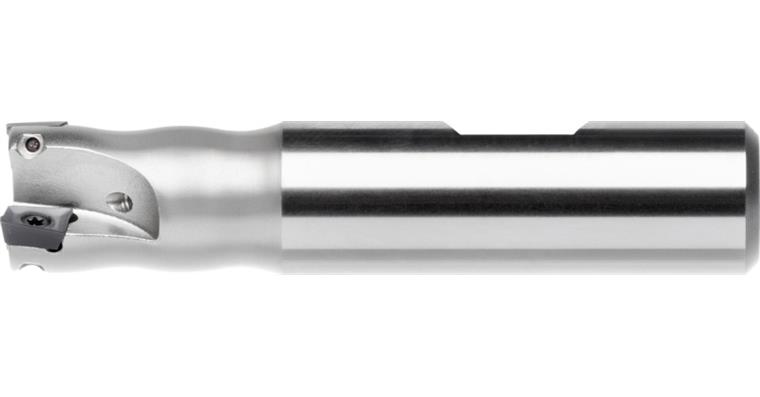

ATORN 90° ang. milling cutter w. shaft Ø 25.0 mm/5 tooth for ind ins AD.X 0903..

ATORN 90° ang. milling cutter w. shaft Ø 25.0 mm/5 tooth for ind ins AD.X 0903..

ATORN 90° ang. milling cutter w. shaft Ø 25.0 mm/5 tooth for ind ins AD.X 0903..
Item no: 1017551 114

Online price:

Available in 5-7 working days.

Execution
  • Wear-resistant, nickel-plated version
  • With internal cooling
  • Tightening torque for clamping screw (indexable insert) 1.2 Nm (TX 08)

Advantage
  • Highly positive indexable insert
  • Low power consumption
  • Precise 90° angular milling


Brand: ATORN
Cutting edge diameter (D): 25 mm
Clearance length (L2): 36 mm
Length (L1): 86 mm
Shank diameter (d): 20 mm
max. ap: 8,5 mm
Number of cutting edges: 5 PCS

ATORN-No.: 10617170

EAN no.: 4050293388947

Product Datasheet
