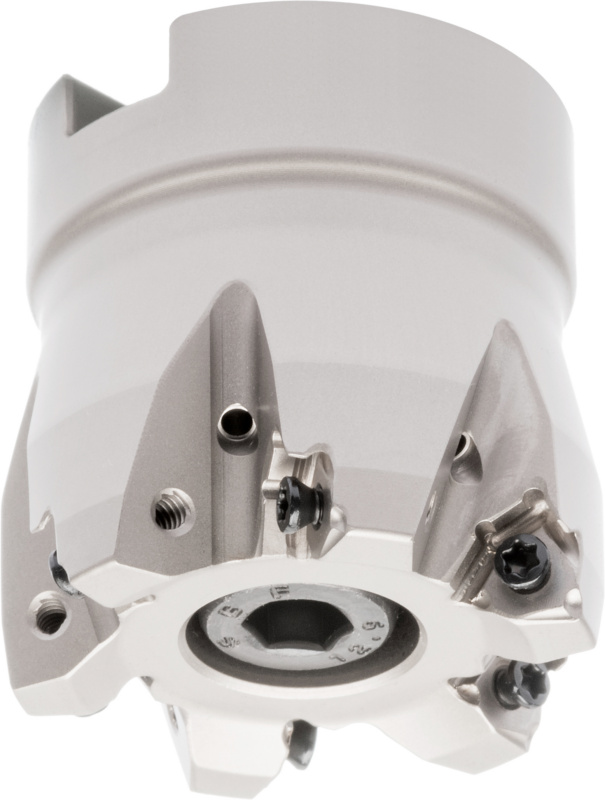

ATORN 90° angular milling cutter diameter 50.0 mm teeth 7

ATORN 90° angular milling cutter diameter 50.0 mm teeth 7

ATORN 90° angular milling cutter diameter 50.0 mm teeth 7
Item no: 1017551 123

Online price:

Available in 5-7 working days.

Execution
  • Wear-resistant, nickel-plated version
  • With internal cooling
  • Tightening torque for clamping screw (indexable insert) 1.2 Nm (TX 08)

Advantage
  • Highly positive indexable insert
  • Low power consumption
  • Precise 90° angular milling


Brand: ATORN
Cutting edge diameter (D): 50 mm
Length (L1): 40 mm
Bore diameter (d): 22 mm
max. ap: 8,5 mm
Number of cutting edges: 7 PCS

ATORN-No.: 10617502

EAN no.: 4050293434644

Product Datasheet
