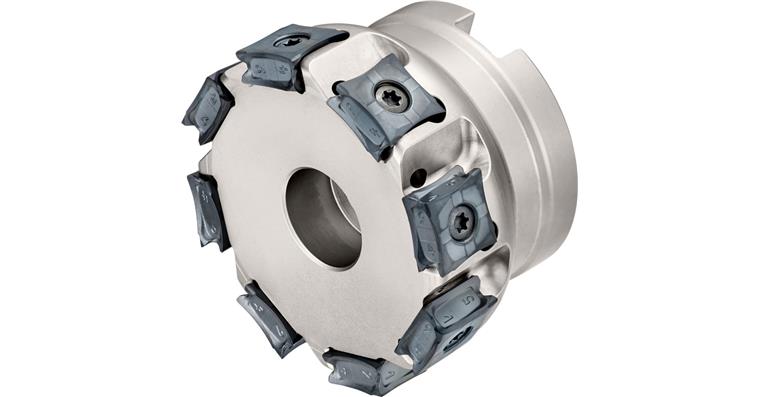

ATORN 90° angular milling cutter tangential diameter 125.0 mm teeth 16, 8-way

ATORN 90° angular milling cutter tangential diameter 125.0 mm teeth 16, 8-way

ATORN 90° angular milling cutter tangential diameter 125.0 mm teeth 16, 8-way
Item no: 1017557 110

Online price:

Still in stock: 3

Application
Milling tool with tangentially arranged indexable inserts and 8 usable cutting edges.

Execution
  • Wear-proof, nickel-plated design
  • With internal cooling

Advantage
Cutting depth down to 10 mm


Brand: ATORN
Cutting edge diameter (D): 125 mm
Length (L1): 63 mm
Bore diameter (d): 40 mm
max. ap: 10 mm
Number of cutting edges: 16 PCS
Suitable for indexable inserts: XNMU 1206..

ATORN-No.: 10617484

EAN no.: 4050293434460

Product Datasheet
